34897-8160 - Molex

Description: MOLEX - 34897-8160 - Automotive Connector, Right Angle, Black, Mini50 34897 Series, Right Angle Plug, 16 Contacts

Download 34897-8160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

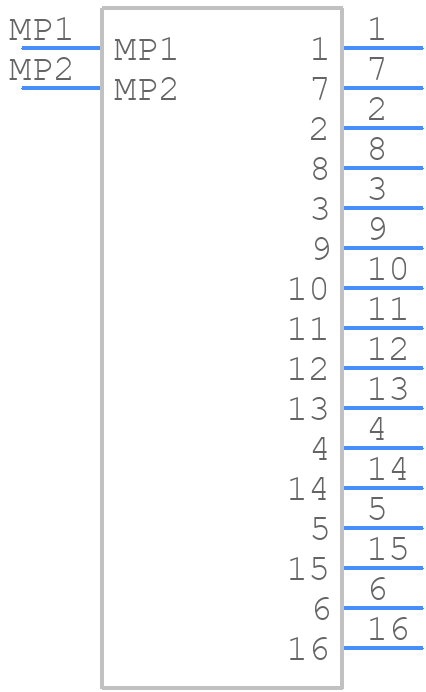

34897-8160 - Molex - PCB symbol
click to zoom
PCB Footprints
34897-8160 - Molex PCB footprint - Other - Other - 34897-8160-4
click to zoom
3D Models
34897-8160 - Molex - 3D model - Other - 34897-8160-4
click to zoom

34897-8160 Details

  • Manufacturer Part Number:

    34897-8160

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9

34897-8160 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the 34897-8160 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 34897-8160 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 34897-8160 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 34897-8160 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

34897-8160 Overview

Use the download button to access the 34897-8160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 34897, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
