34BW3P12B4M7QT - Grayhill

34BW3P12B4M7QT Details

• Manufacturer Part Number:

  34BW3P12B4M7QT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  Grayhill Inc

• YTEOL:

  9

• Actuator Length:

  0.299 inch

• Body Breadth:

  12.7 mm

• Body Height:

  12.8 mm

• Body Length or Diameter:

  14.35 mm

• Bushing Length:

  0.25 inch

• Contact (AC) Max Rating R Load:

  5A@125VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  28 V

• Electrical Life:

  50000 Cycle(s)

• Illumination:

  NON-ILLUMINATED

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

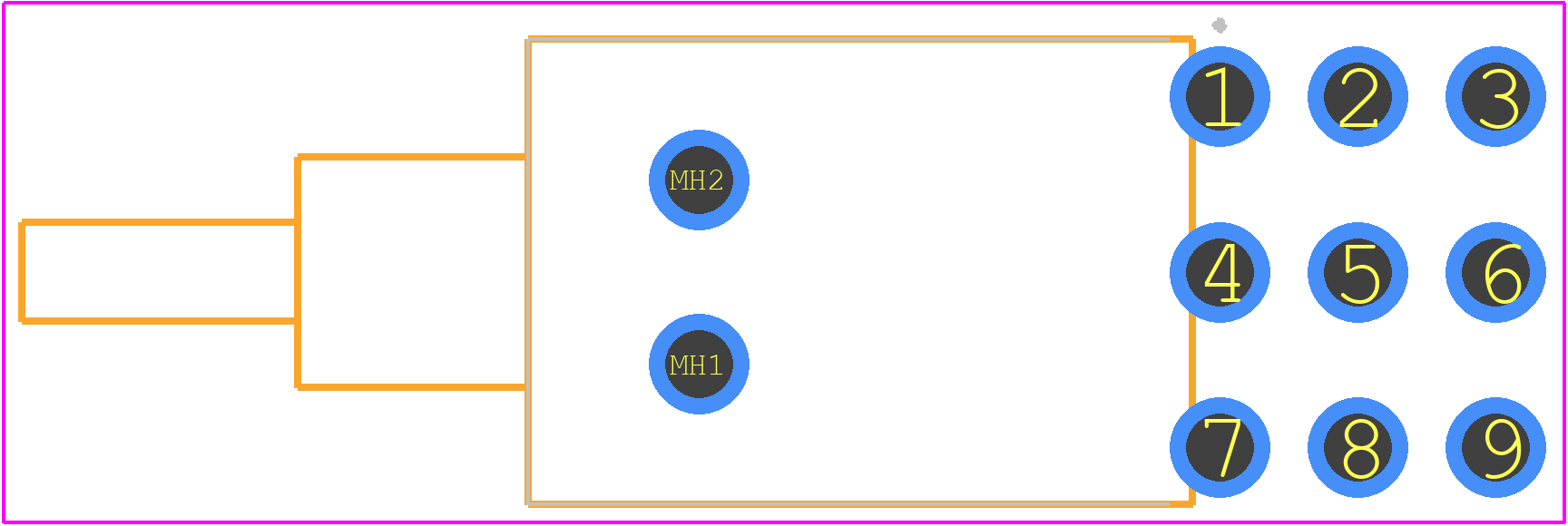

• PCB Hole Count:

  11

• Sealing:

  EPOXY TERMINAL SEALED; IP67

• Surface Mount:

  NO

• Switch Action:

  LATCHED

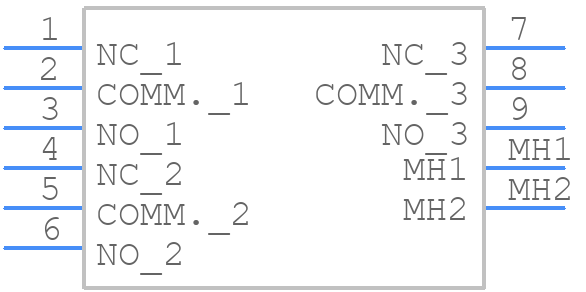

• Switch Function:

  3PDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  Gold (Au)

• Termination Type:

  SOLDER
