3521240RFT - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Width 3.2 MM | Product Width .126 INCH | Product Height .022 INCH | Product Height .55 MM | Product Length 6.35 MM | Product Length .25 INCH | Electrical Characteristics: Operating Voltage 250 V | Resistance Value 240 OHM | Resistance Class Up to 1kΩ | Passive Component Tolerance 1 PCT | Power Rating 2 WATT | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Resistor Type Power Resistor | Package Size Code 2512 |

Download 3521240RFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3521240RFT - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

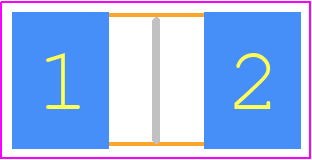

3521240RFT - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - 2512
click to zoom
3D Models
3521240RFT - TE Connectivity - 3D model - Resistor Chip - 2512
click to zoom

3521240RFT Details

  • Manufacturer Part Number:

    3521240RFT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    TR

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    240 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    250 V

3521240RFT Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 3521240RFT is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • Yes, the 3521240RFT is part of the TE Connectivity's AMPSEAL 16 connector family and is compatible with other products within this family. However, it's essential to verify compatibility with specific products and applications.
  • The operating temperature range for the 3521240RFT is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 3521240RFT has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult the datasheet and application notes for specific guidance on environmental considerations.
