354078-E footprint, schematic symbol and 3D model by TE Connectivity

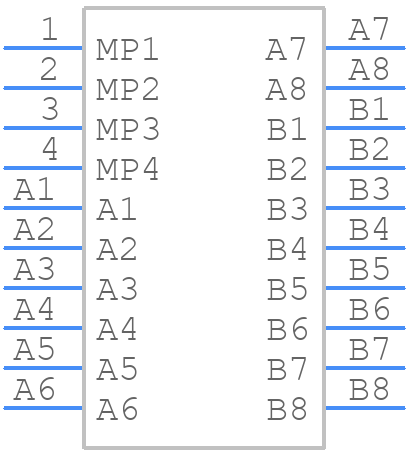

Symbol

click to zoom

PCB Footprints

354078-E - TE Connectivity PCB footprint - Other - Other - 354078-E-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 354078-E
Part Number 354078-E
Manufacturer TE Connectivity
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - 354078-E-1
Released Date Aug 12, 2024
Last Modified Date Dec 15, 2024 11:00 PM UTC
Pinout / Pin List Click Here (Member Only)

354078-E Details

Manufacturer Part Number:
354078-E
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks, 5 Days
Manufacturer:
TE Connectivity
YTEOL:
9.4
Board Mounting Option:
LOCATING POST
Body Breadth:
0.378 inch
Body Depth:
0.151 inch
Body Length:
0.6 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
1.7A
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
1.7 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
16
UL Flammability Code:
94V-0

354078-E Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 354078-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of appropriate wire adapters or terminals. However, it's crucial to verify the wire size and type compatibility before making a connection.
The 354078-E connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
The 354078-E connector has a sealed design that provides some level of protection against environmental factors. However, it's not designed for use in extremely harsh environments. If you need to use the connector in such conditions, consider using additional protective measures, such as conformal coatings or environmental seals.

Trust Checks

Community Provided

System Verified

Community Approved

354078-E Overview

Use the download button to access the 354078-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 35407, or try a keyword search, such as Headers and Edge Type Connectors
