Infineon provides a dedicated application note (AN2014-01) that outlines the recommended PCB layout and thermal management guidelines for the 35CGQ150SCS. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IGBT's gate-emitter voltage (VGE). The driver should also have a suitable propagation delay and rise/fall times to ensure proper switching. Consult Infineon's gate driver selection guide (GD Selection Guide) for more information.
Paralleling multiple modules can increase the overall current rating, but it requires careful consideration of the module's internal resistance, thermal management, and gate drive synchronization. Infineon provides guidelines for paralleling IGBT modules in their application note (AN2013-03). It's essential to follow these guidelines to ensure reliable operation and avoid potential issues.
Implementing overvoltage protection (OVP) and overcurrent protection (OCP) circuits is crucial to prevent damage to the IGBT module. Infineon recommends using a dedicated OVP/OCP IC, such as the Infineon TLE4264, which can detect overvoltage and overcurrent conditions and provide a fault signal to the system controller.
Handle the 35CGQ150SCS with care to prevent mechanical damage, electrostatic discharge (ESD), and moisture-related issues. Store the modules in their original packaging, away from direct sunlight, and in a dry environment. Follow Infineon's storage and handling guidelines (Package and Storage Guidelines) to ensure the module's reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
35CGQ150SCS Overview

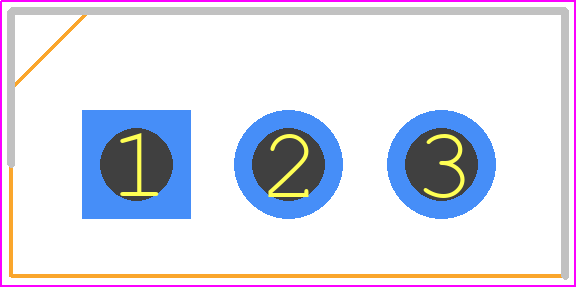

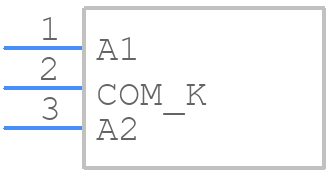

Use the download button to access the 35CGQ150SCS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35CGQ,
or try a keyword search, such as Rectifier Diodes
