35VXG4700MEFCSN22X40 - Rubycon

Description: 4700 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

Download 35VXG4700MEFCSN22X40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
35VXG4700MEFCSN22X40 - Rubycon - PCB symbol
click to zoom
PCB Footprints

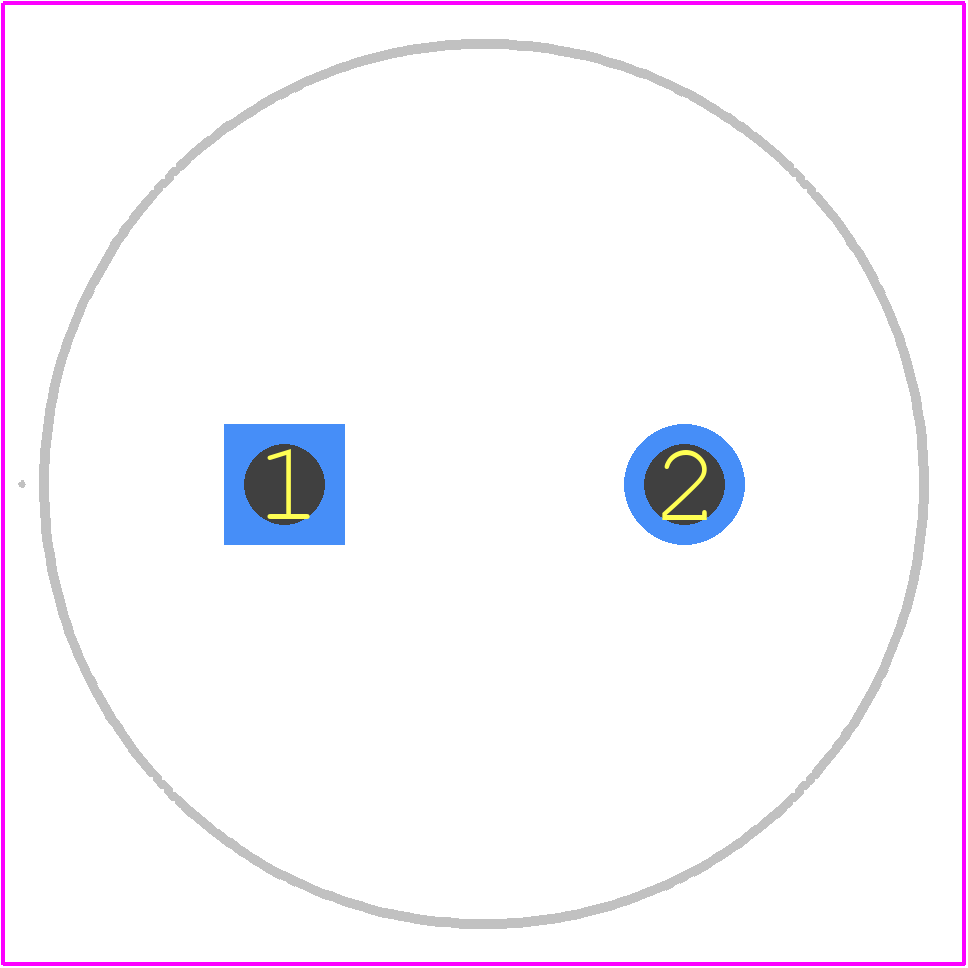

35VXG4700MEFCSN22X40 - Rubycon PCB footprint - Other - Other - 22mm x 40mm_2026
click to zoom
3D Models
35VXG4700MEFCSN22X40 - Rubycon - 3D model - Other - 22mm x 40mm_2026
click to zoom

35VXG4700MEFCSN22X40 Details

  • Manufacturer Part Number:

    35VXG4700MEFCSN22X40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.21676 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    2010 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.4

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

35VXG4700MEFCSN22X40 Frequently Asked Questions (FAQs)

  • Rubycon recommends derating the voltage by 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 35VXG4700MEFCSN22X40 is designed to operate up to 125°C, but Rubycon recommends reducing the voltage rating by 1.25% for every 10°C above 85°C to ensure reliability.
  • The ESR of the 35VXG4700MEFCSN22X40 is not explicitly stated in the datasheet, but Rubycon provides ESR values for similar capacitors in their catalog. For this specific part, the ESR is approximately 0.02Ω at 100kHz and 20°C.
  • The 35VXG4700MEFCSN22X40 is designed for general-purpose use and has a moderate ESR. While it can be used in high-frequency applications, it may not be the best choice for extremely high-frequency circuits. Rubycon offers other capacitor series with lower ESR values for high-frequency applications.
  • Rubycon recommends soldering the 35VXG4700MEFCSN22X40 at a temperature of 260°C (max) for 3 seconds (max) to prevent damage to the capacitor.
