3602-12-72 - Coto Technology

Description: Reed Relays, 2 Form A

Download 3602-12-72 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

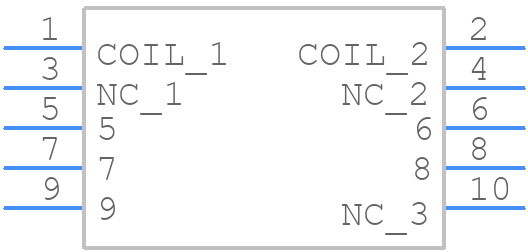

Symbol
3602-12-72 - Coto Technology - PCB symbol
click to zoom

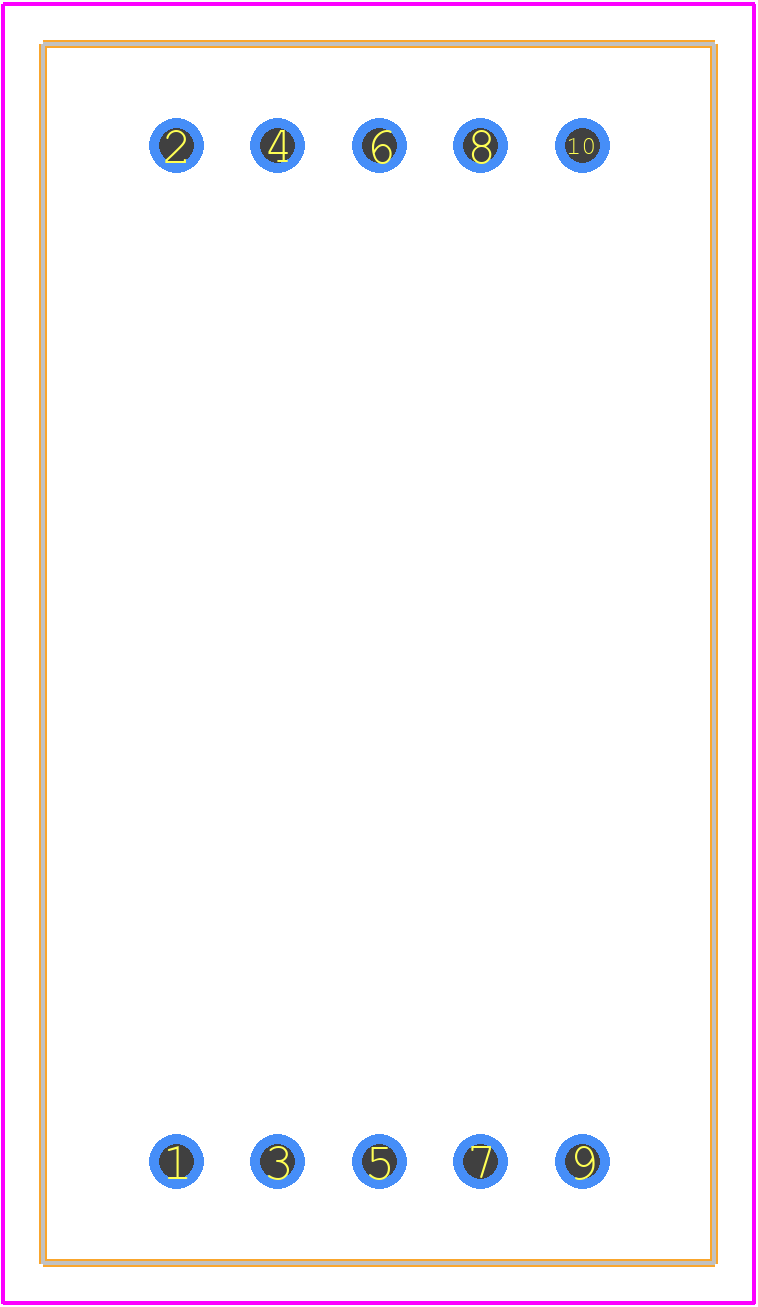

PCB Footprints
3602-12-72 - Coto Technology PCB footprint - Other - Other - 3602-12-72-1
click to zoom
3D Models
3602-12-72 - Coto Technology - 3D model - Other - 3602-12-72-1
click to zoom

3602-12-72 Details

  • Manufacturer Part Number:

    3602-12-72

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.60

  • Manufacturer:

    Coto Technology USA

  • YTEOL:

    8

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    16.76 mm

  • Body Height:

    12.06 mm

  • Body Length or Diameter:

    30.48 mm

  • Coil Current(DC)-Max:

    0.006 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    72 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    2000 Ω

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    0.25A@150VAC

  • Contact Current(AC)-Max:

    0.25 A

  • Contact Current(DC)-Max:

    0.25 A

  • Contact (DC) Max Rating R Load:

    0.25A@150VDC

  • Contact Resistance:

    200 mΩ

  • Contact Voltage(AC)-Max:

    150 V

  • Contact Voltage(DC)-Max:

    150 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    500000000 Cycle(s)

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000000 Ω

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    10

  • Operate Time:

    0.75 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    30.48mm x 16.76mm x 12.06mm

  • Relay Action:

    MBB

  • Relay Form:

    2 FORM A

  • Relay Function:

    DPST

  • Relay Type:

    DRY REED RELAY

  • Release Time:

    0.1 ms

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Length:

    0.002900685801371603 inch

  • Termination Type:

    SOLDER

3602-12-72 Frequently Asked Questions (FAQs)

  • Coto Technology provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical stress.
  • To prevent damage to the relay, it's crucial to handle the device in a way that minimizes exposure to strong magnetic fields, such as those generated by magnets, motors, or transformers. Use anti-static wrist straps, mats, and containers to prevent electrostatic discharge (ESD) damage.
  • While the datasheet specifies the relay's operating voltage range, it's essential to know that the device can withstand voltage transients or spikes up to 1.5 times the rated voltage for a short duration (typically 100-200 ns). However, it's recommended to consult with Coto Technology's application engineers for specific guidance on voltage transient tolerance.
  • The relay is rated for operation up to 85°C, but it's essential to derate the device's performance at higher temperatures. Coto Technology provides derating factors in their application notes, which can help engineers determine the relay's capabilities in high-temperature environments.
  • To minimize contact wear and tear, it's recommended to follow a specific activation and deactivation sequence. Typically, this involves turning off the coil before turning off the power to the load, and then turning on the power to the load before turning on the coil. Consult Coto Technology's application notes for specific guidance on relay sequencing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3602-12-72 Overview

Use the download button to access the 3602-12-72 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3602-, or try a keyword search, such as Reed Relays
