Part Image

3657 - Adafruit

Description: Development Boards & Kits - ARM Adafruit ATSAMD09 Breakout w/ seesaw

Download 3657 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 3657 model

Email notifications will be applied after download.

Send part feedback

Symbol

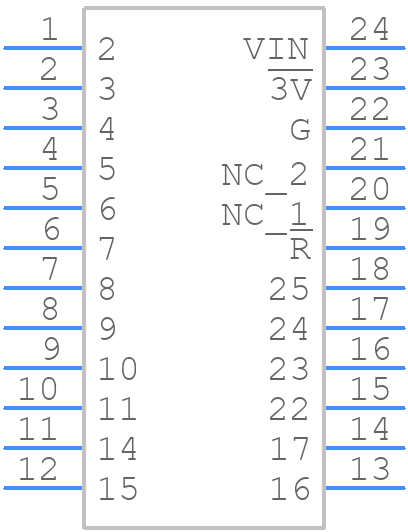

3657 - Adafruit - PCB symbol

PCB Footprints

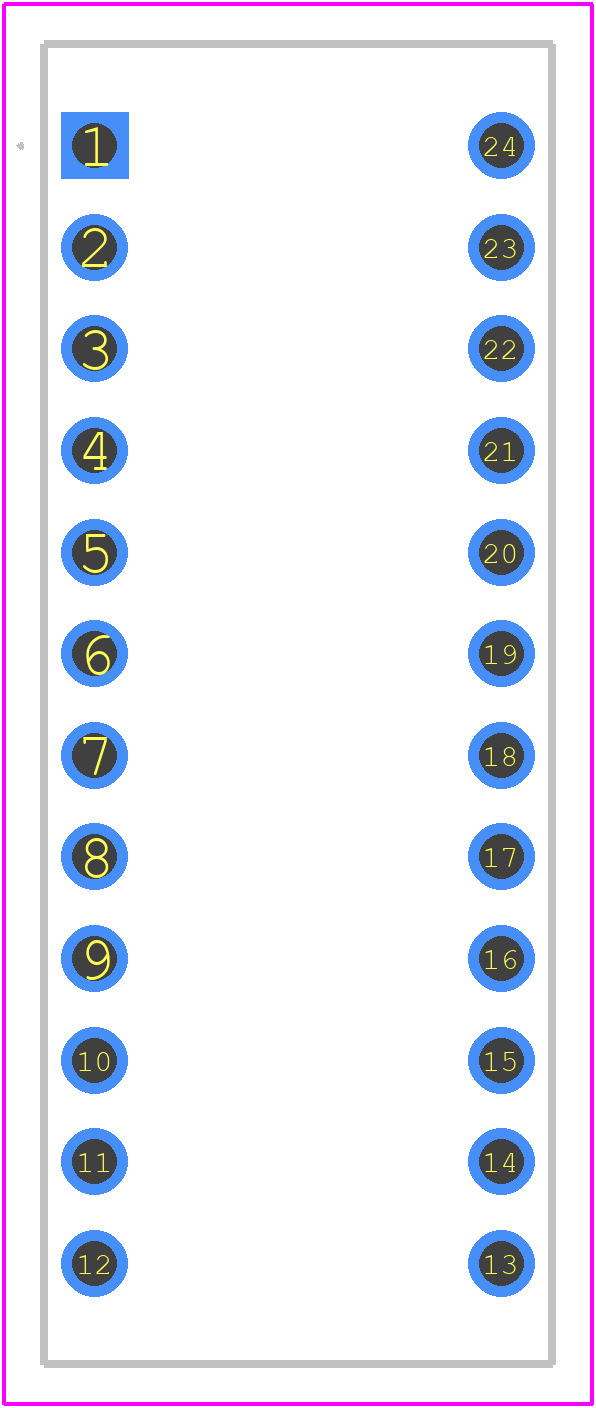

3657 - Adafruit PCB footprint - Other - Other - 32.0mm x 12.0mm x 3.5mm

3D Models

3657 - Adafruit - 3D model - Other - 32.0mm x 12.0mm x 3.5mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3657
Part Number 3657
Manufacturer Adafruit
Pin Count 24
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - 32.0mm x 12.0mm x 3.5mm
Released Date Jan 27, 2025
Last Modified Date Jan 27, 2025 7:18 AM UTC
Pinout / Pin List Click Here (Member Only)

3657 Details

Manufacturer Part Number:
3657
Manufacturer:
Adafruit Industries

Trust Checks

Community Provided

System Verified

Community Approved

3657 Overview

Use the download button to access the 3657 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Electric Fuses
