36638-0012 - Molex

Description: Connector Header Board Edge, Through Hole, Right Angle 96 (48 + 48) position

Download 36638-0012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
36638-0012 - Molex - PCB symbol
click to zoom
PCB Footprints

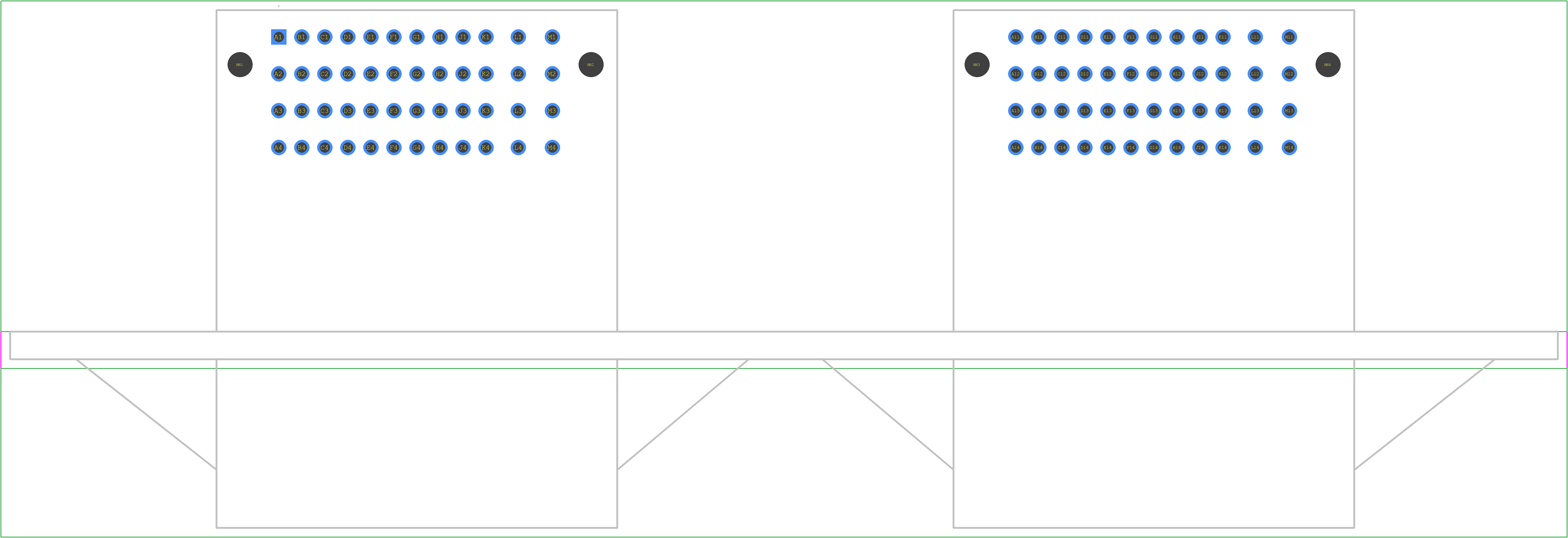

36638-0012 - Molex PCB footprint - Other - Other - 36638-0012-6
click to zoom
3D Models
36638-0012 - Molex - 3D model - Other - 36638-0012-6
click to zoom

36638-0012 Details

  • Manufacturer Part Number:

    36638-0012

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    TIN

  • Contact Material:

    NOT APPLICABLE

  • JESD-609 Code:

    e3

36638-0012 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 36638-0012 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The connector is rated for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and UV exposure.
  • The maximum wire size that can be used with the 36638-0012 is 18 AWG (1.0 mm²).
  • The connector is rated for operation up to 105°C (221°F). However, it's recommended to derate the current carrying capacity at higher temperatures.
