374317-E - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Board-to-Board Configuration Parallel | PCB Mount Orientation Right Angle | Number of Columns 10 | Board-to-Board Configuration Orthogonal | Stackable No | Connector Contact Load Condition Fully Loaded | Number of Positions 20 | Number of Rows 2 | Number of Loaded Positions 20 | Contact Features: PCB Contact Termination Area Plating Material Thickness 4 – 6 MICM | PCB Contact Termination Area Plating Material Thickness 157.48 – 236.22

Download 374317-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

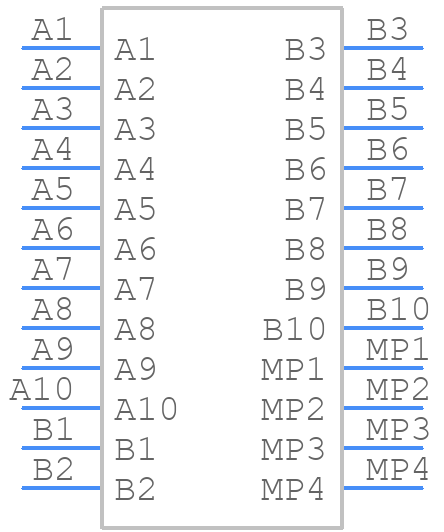

374317-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

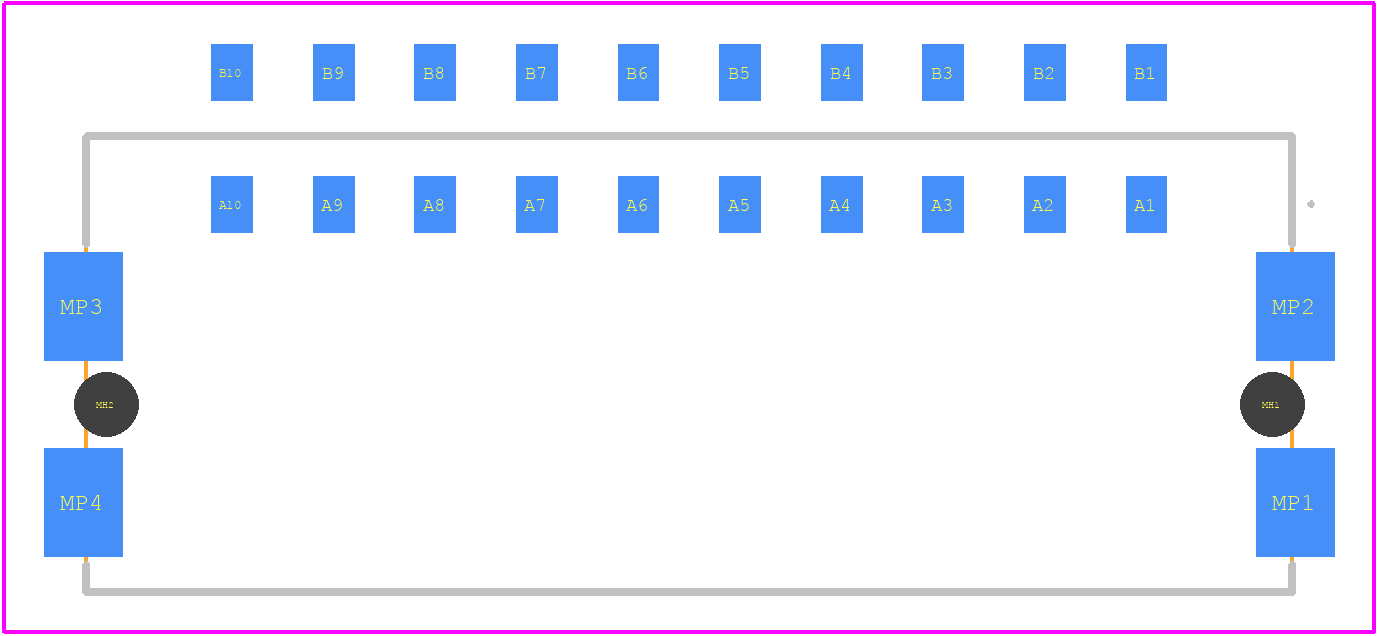

374317-E - TE Connectivity PCB footprint - Other - Other - 374317-E-1
click to zoom
3D Models
374317-E - TE Connectivity - 3D model - Other - 374317-E-1
click to zoom

374317-E Details

  • Manufacturer Part Number:

    374317-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.539 inch

  • Body Depth:

    0.314 inch

  • Body Length:

    1.254 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

374317-E Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 374317-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 374317-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and more.
  • While the datasheet specifies AWG 20-24 wire sizes, the 374317-E connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 374317-E connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific harsh environments and applications.
