38218000410 - LITTELFUSE

Description: Fuses with Leads (Through Hole) 250V 8A IEC TL TR5 SL

Download 38218000410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38218000410 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

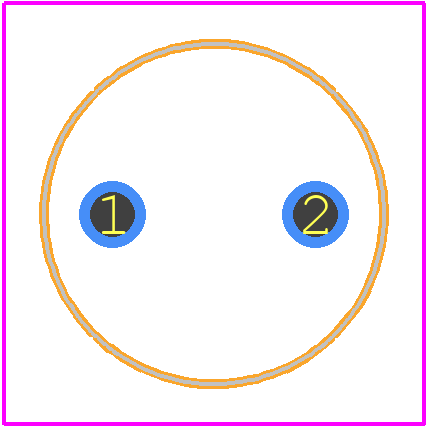

38218000410 - LITTELFUSE PCB footprint - Other - Other - 38218000410-2
click to zoom
3D Models
38218000410 - LITTELFUSE - 3D model - Other - 38218000410-2
click to zoom

38218000410 Details

  • Manufacturer Part Number:

    38218000410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.75

  • Blow Characteristic:

    TIME LAG

  • Body Height:

    8 mm

  • Body Length or Diameter:

    8.5 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    TR5

  • JESD-609 Code:

    e3

  • Joule Integral-Nom:

    233 J

  • Mounting Feature:

    THROUGH HOLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BULK

  • Rated Breaking Capacity:

    100 A

  • Rated Current:

    8 A

  • Rated Voltage(AC):

    250 V

  • Reference Standard:

    CUL; PSE; UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Trip Time or Delay:

    0.15 s
