38660-8803 - Molex

Description: Barrier Terminal Blocks .500 TRI BARRIER 3P 600V

Download 38660-8803 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38660-8803 - Molex - PCB symbol
click to zoom
PCB Footprints

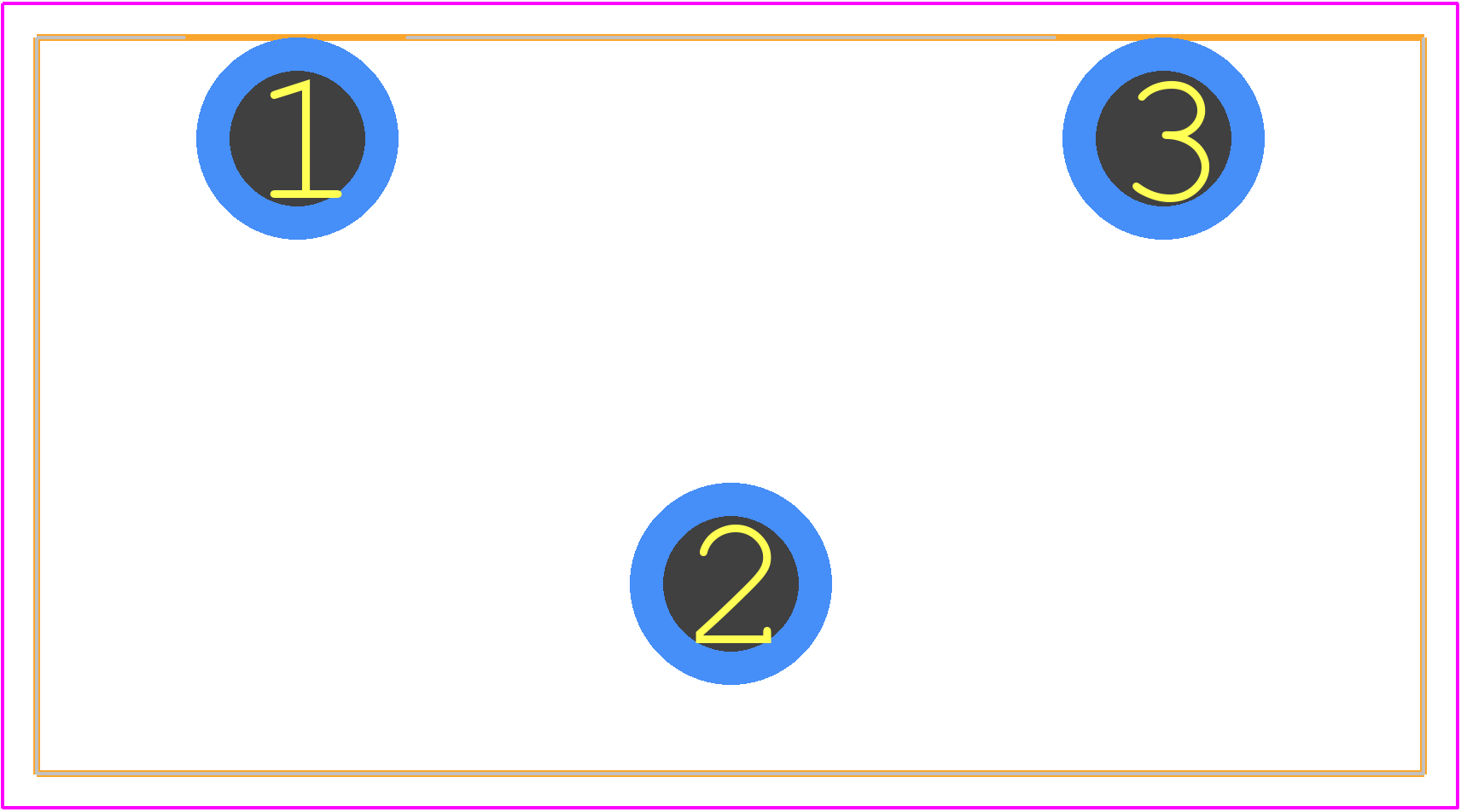

38660-8803 - Molex PCB footprint - Other - Other - 38660-8803-1
click to zoom
3D Models
38660-8803 - Molex - 3D model - Other - 38660-8803-1
click to zoom

38660-8803 Details

  • Manufacturer Part Number:

    38660-8803

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    MATERIAL: POLYBUTALENE TERAPTALATE/POLYESTER

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    45 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    IEC

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    8 AWG

38660-8803 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 38660-8803 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • The operating temperature range for the 38660-8803 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 38660-8803 connector is compatible with lead-free soldering processes, but it's recommended to follow Molex's guidelines for soldering and to consult with a Molex representative for specific application requirements.
  • The mating cycle life of the 38660-8803 connector is 500 cycles minimum, but this can vary depending on the application and usage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38660-8803 Overview

Use the download button to access the 38660-8803 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38660, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
