38969-0003 - Molex

Description: Barrier Terminal Blocks 3P 12.7MM TERM STRP SR W/OUT MNT END

Download 38969-0003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38969-0003 - Molex - PCB symbol
click to zoom
PCB Footprints

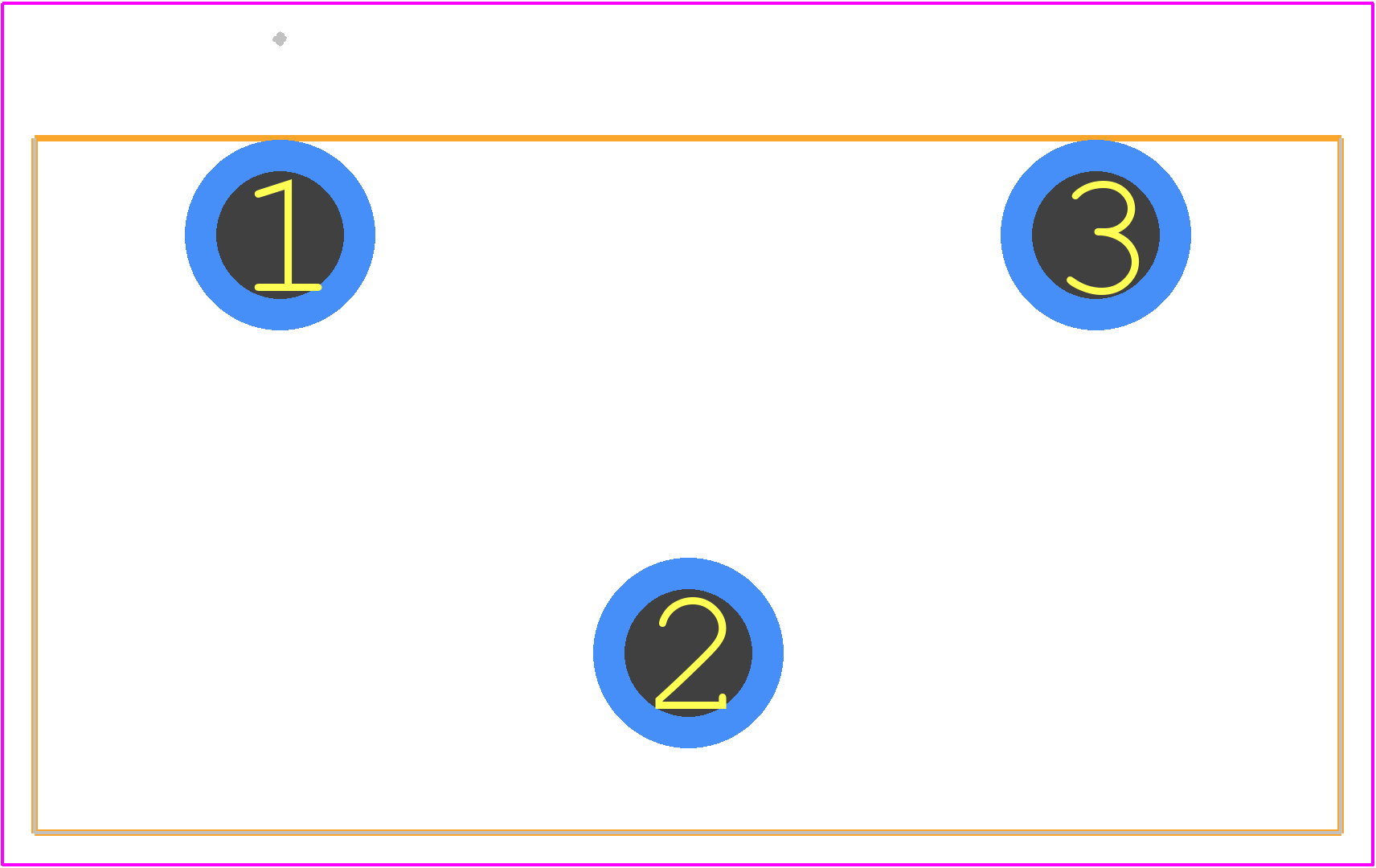

38969-0003 - Molex PCB footprint - Other - Other - 38969-0003-2
click to zoom
3D Models
38969-0003 - Molex - 3D model - Other - 38969-0003-2
click to zoom

38969-0003 Details

  • Manufacturer Part Number:

    38969-0003

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.85

  • Additional Feature:

    STANDARD: UL 94V-0; POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    50 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    8.37 mm2

  • Wire Gauge:

    8 AWG

38969-0003 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 38969-0003 is designed to withstand high-vibration environments, making it suitable for aerospace, industrial, and transportation applications.
  • Yes, the 38969-0003 is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and resistance to moisture, salt, and corrosion.
  • The 38969-0003 has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 38969-0003 is designed for high-speed data transmission, with a bandwidth of up to 10 Gbps and a shielding effectiveness of 90 dB at 1 GHz.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38969-0003 Overview

Use the download button to access the 38969-0003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38969, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
