Part Image

39-29-9083 - Molex

Description: Molex MINI-FIT JR. Series, Series Number 5566, 4.2mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 9A

Download 39-29-9083 Model

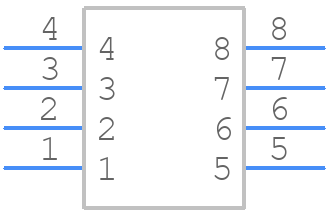

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

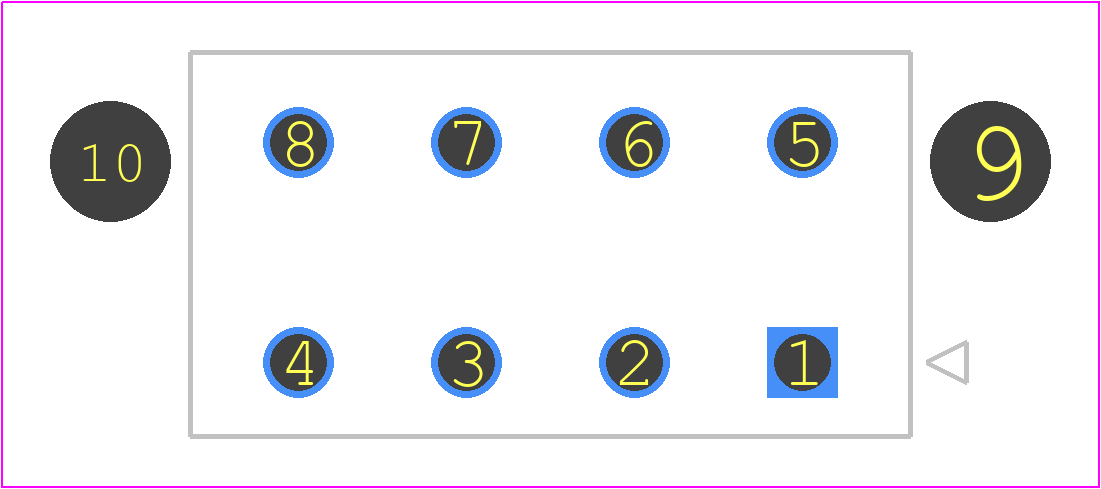

39-29-9083 - Molex PCB footprint - Other - Other - 39-29-908Y
click to zoom
3D Models
39-29-9083 - Molex  - 3D model - Other - 39-29-908Y
click to zoom

39-29-9083 Details

  • Manufacturer Part Number:

    39-29-9083

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Brazil, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 4 Days

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):7A

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.38 inch

  • Body Depth:

    0.504 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN COPPER

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    30 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    6.672 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.165 inch

  • Mating Contact Row Spacing:

    0.165 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    POLARIZED LCK

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5118 mm

  • Polarization Key:

    HOUSING SIDE

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    4.191 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-2

  • Withdrawl Force-Min:

    3.1136 N
