39-29-9127 - Molex

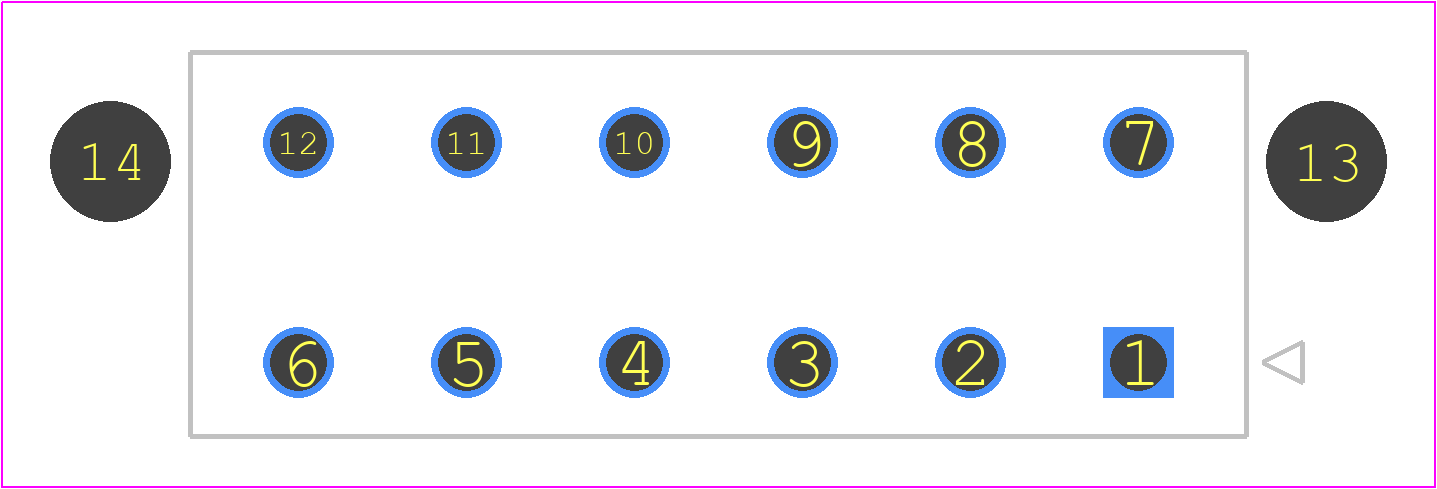

39-29-9127 Details

• Manufacturer Part Number:

  39-29-9127

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mexico, Puerto Rico, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Molex

• YTEOL:

  6.75

• Additional Feature:

  RATED CURRENT(POWER):6A

• Board Mounting Option:

  PEG

• Body Breadth:

  0.38 inch

• Body Depth:

  0.504 inch

• Body Length:

  1.315 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1500VAC V

• Durability:

  30 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  6.672 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYAMIDE66

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.165 inch

• Mating Contact Row Spacing:

  0.165 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  POLARIZED LCK

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.5118 mm

• Polarization Key:

  HOUSING SIDE

• Reference Standard:

  CSA, UL

• Terminal Length:

  0.14 inch

• Terminal Pitch:

  4.191 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  12

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.1136 N
