39-30-6168 - Molex

39-30-6168 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 39-30-6168 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environment applications?
  The 39-30-6168 connector has a plastic housing and is not designed for outdoor or harsh environment applications. It's recommended to use connectors with a more robust design and materials, such as those with a metal housing or specialized coatings, for such applications.
• Can I use this connector with wire sizes other than 18 AWG?
  While the 39-30-6168 connector is designed for 18 AWG wire, it can accommodate wire sizes between 16 AWG and 20 AWG. However, it's essential to ensure the wire size and insulation diameter are within the connector's specifications to ensure reliable connections.

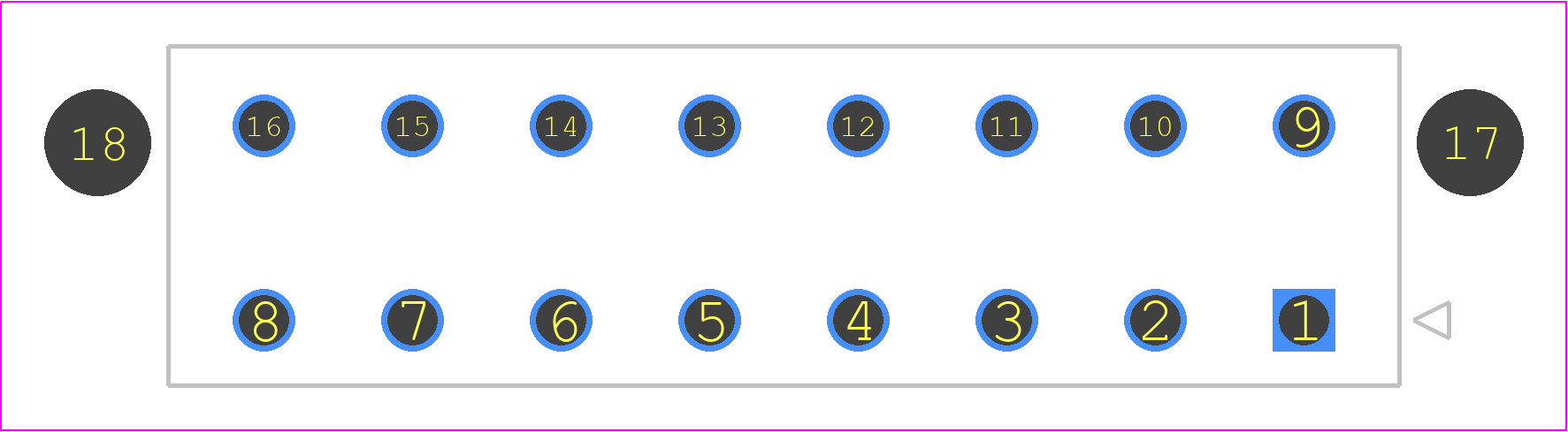

• Are there any specific PCB layout considerations for this connector?
  Yes, it's recommended to follow Molex's PCB layout guidelines for the 39-30-6168 connector to ensure proper mating and unmating. The guidelines include recommendations for PCB hole size, pad size, and spacing to prevent damage to the connector or PCB.
