3FD-210 - Tamura

Description: Power Transformers 10VCT@0.11A 5V@0.22A Dual Primary

Download 3FD-210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3FD-210 - Tamura - PCB symbol
click to zoom
PCB Footprints

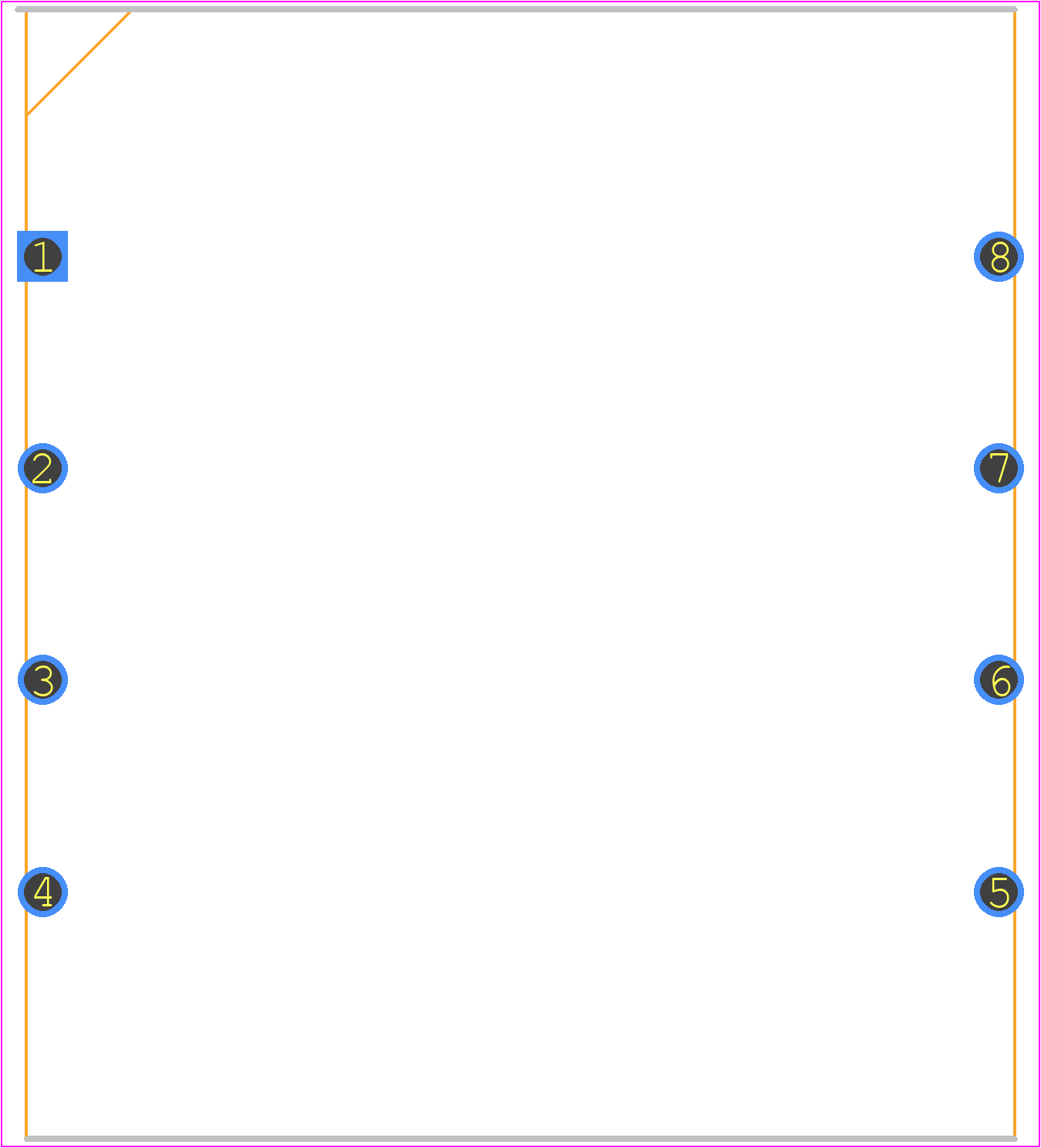

3FD-210 - Tamura PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 3FD-210
click to zoom
3D Models
3FD-210 - Tamura - 3D model - Dual-In-Line Packages - 3FD-210
click to zoom

3FD-210 Details

  • Manufacturer Part Number:

    3FD-210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Tamura Corporation of America

  • YTEOL:

    6.26

  • Additional Feature:

    PCB MOUNTABLE

  • Approvals:

    UL; CSA

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.11 A

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.1 VA
