Part Image

3FS-220 - Tamura

Description: Power Transformers POWER TRANSFORMER

Download 3FS-220 Model

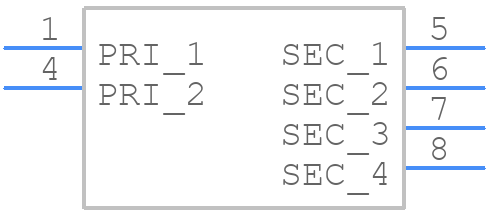

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

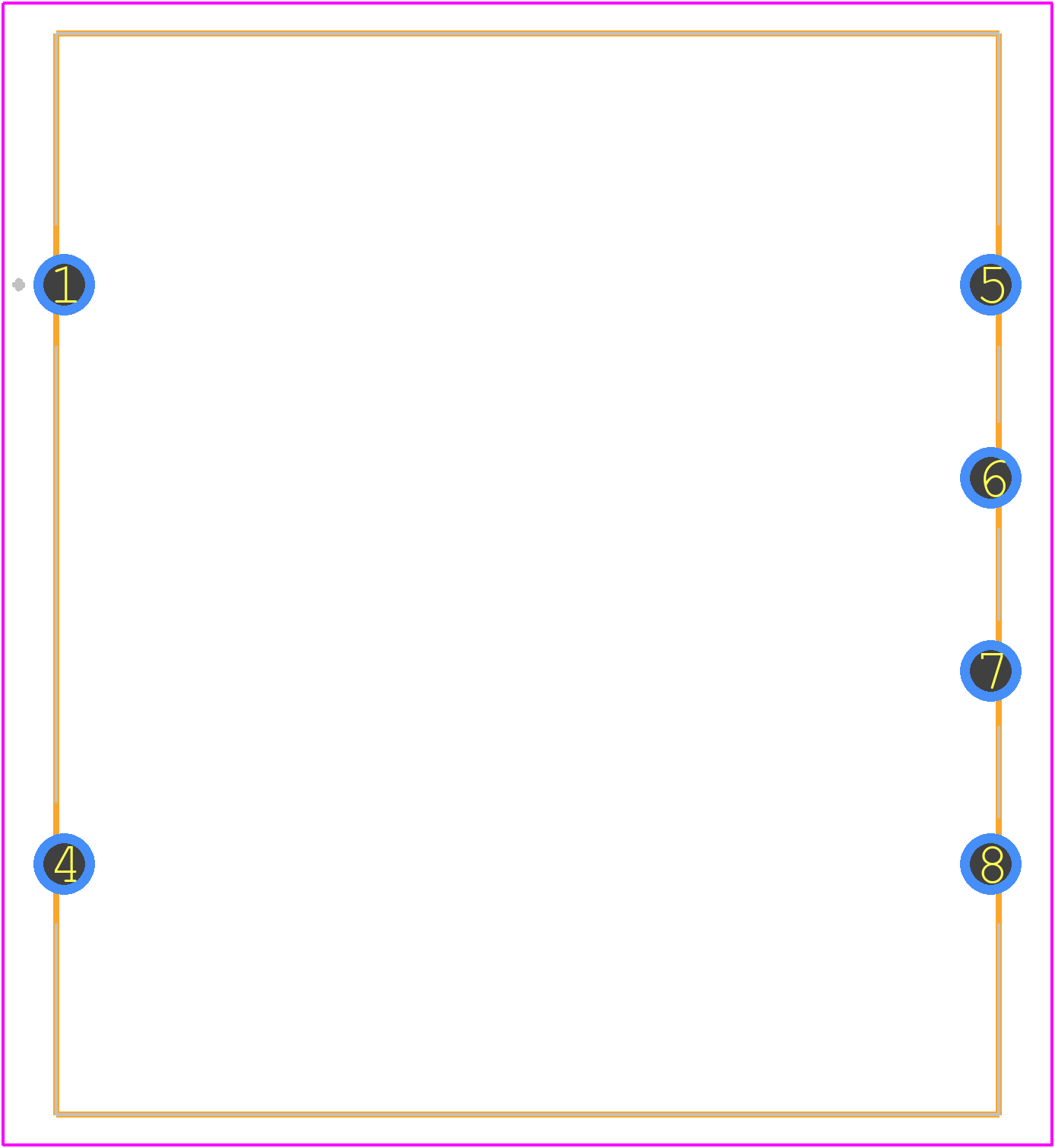

3FS-220 - Tamura PCB footprint - Other - Other - 3FS-220-2
click to zoom
3D Models
3FS-220 - Tamura  - 3D model - Other - 3FS-220-2
click to zoom

3FS-220 Details

  • Manufacturer Part Number:

    3FS-220

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Tamura Corporation of America

  • YTEOL:

    6.26

  • Additional Feature:

    PCB MOUNTABLE

  • Approvals:

    UL; CSA

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.055 A

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.1 VA

3FS-220 Frequently Asked Questions (FAQs)

  • Tamura recommends a 4-layer PCB with a solid ground plane and a separate power plane to minimize noise and ensure stable operation. A minimum of 2 oz copper thickness is recommended for the power traces.
  • The 3FS-220 has a built-in thermal pad for heat dissipation. Ensure good thermal contact between the pad and a heat sink or metal plate. A thermal interface material (TIM) can be used to improve heat transfer. Keep the surrounding area clear of obstructions to allow for good airflow.
  • The 3FS-220 can tolerate a maximum voltage deviation of ±10% of the nominal input voltage without affecting its performance or reliability. Exceeding this limit may result in reduced performance, instability, or even damage to the device.
  • The 3FS-220 is rated for operation up to 85°C ambient temperature. However, derating is required for temperatures above 70°C. Consult the datasheet for derating curves and ensure proper cooling to prevent overheating.
  • Start by checking the input voltage, output voltage, and current. Verify that the device is properly cooled and that the PCB layout meets the recommended guidelines. Consult the datasheet and application notes for troubleshooting guides and fault detection methods.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3FS-220 Overview

Use the download button to access the 3FS-220 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3FS-2, or try a keyword search, such as Power/Mains Transformers
