- Part Number 3FS-316
- Manufacturer Tamura
- Pin Count 6
- Part Category Transformer
- Package Category Other

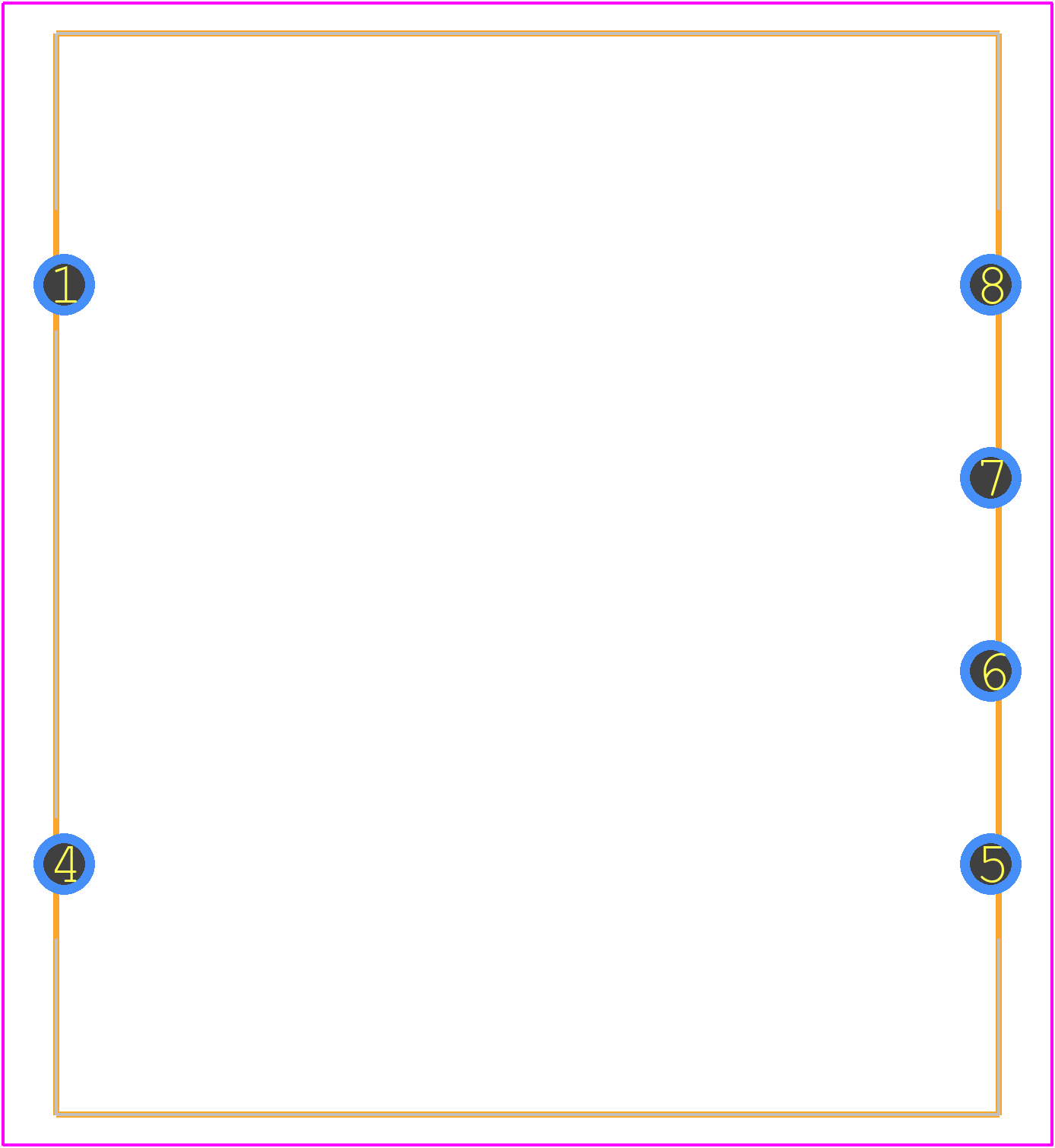

- Footprint Name Other - 3FS-316-3
- Released Date Nov 25, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FS-316 Details
-
Manufacturer Part Number:
3FS-316
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
0.15 A
3FS-316 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended to minimize noise and ensure optimal performance.
-
Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and smooth.
-
The 3FS-316 can operate safely between -40°C to 125°C, but optimal performance is achieved between 0°C to 85°C.
-
Yes, the 3FS-316 is designed to withstand high-vibration and high-shock environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
-
Use a multimeter to check for proper voltage supply, signal integrity, and component functionality. Consult the datasheet and application notes for troubleshooting guidelines.
