- Part Number 3FS-324
- Manufacturer Tamura
- Pin Count 6
- Part Category Transformer
- Package Category Other

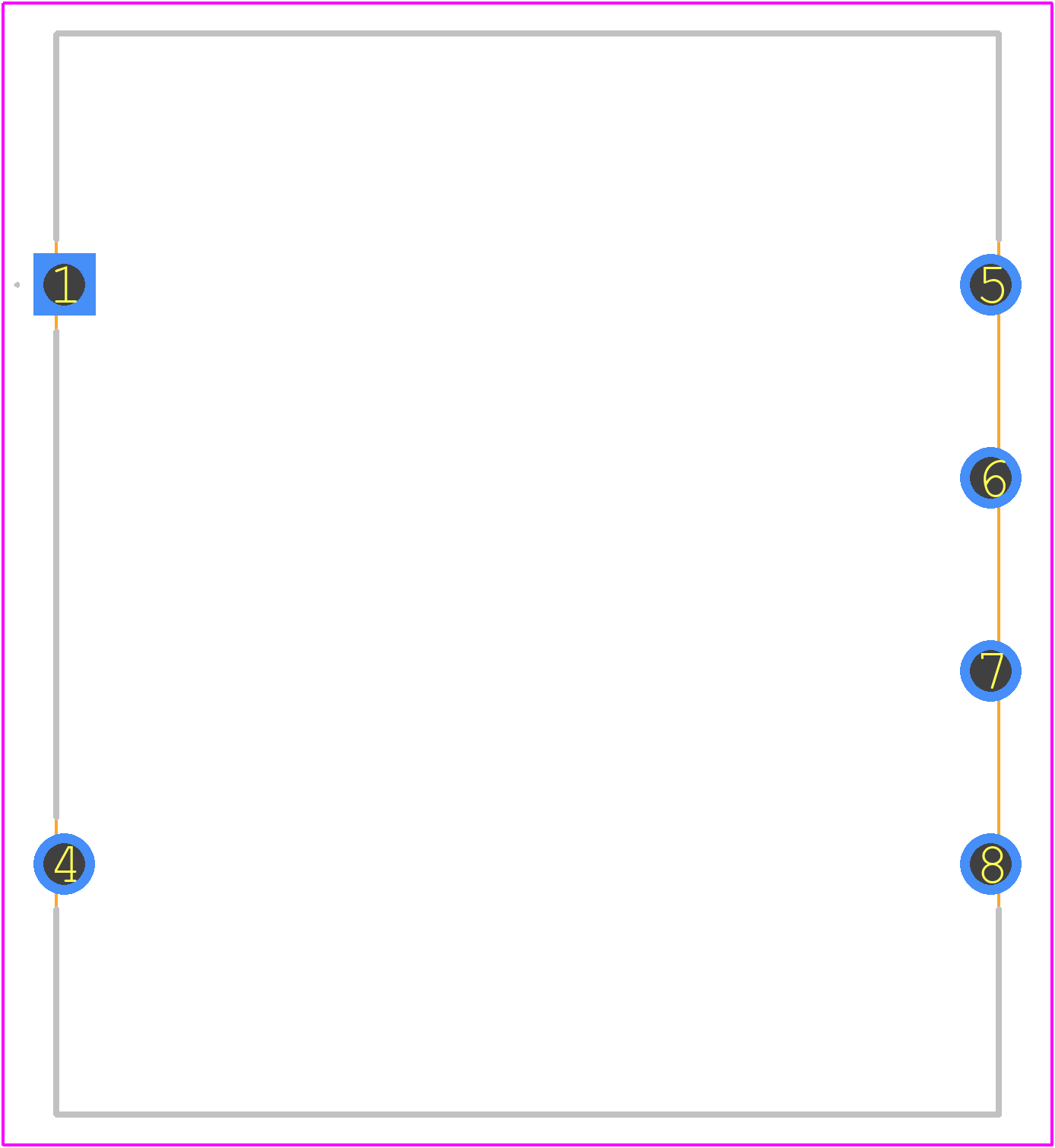

- Footprint Name Other - 3FS-324-1
- Released Date Oct 2, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FS-324 Details
-
Manufacturer Part Number:
3FS-324
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
0.1 A
3FS-324 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
-
Ensure good airflow around the device, avoid overheating nearby components, and consider using a heat sink if the device is expected to operate in high-temperature environments.
-
The recommended input voltage range is 3.3V to 5.5V, but it can operate down to 2.7V with reduced performance. Avoid exceeding 6V to prevent damage.
-
Check the input voltage, output load, and PCB layout. Verify that the output capacitor is properly sized and placed. Use an oscilloscope to measure the output voltage and check for noise or oscillations.
-
The 3FS-324 is not designed for high-reliability or safety-critical applications. It is intended for general-purpose use. For critical applications, consider using a device with specific safety certifications (e.g., automotive, aerospace, or medical).
Trust Checks
Community Provided
System Verified
Community Approved
3FS-324 Overview

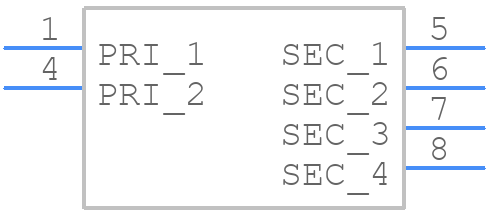

Use the download button to access the 3FS-324 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3FS-3,
or try a keyword search, such as Power/Mains Transformers
