3PCV-06-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Rows 1 | Number of Levels 1 | Number of Positions 6 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Base Material Copper Alloy | Contact Current Rating (Max) 10 AMP | Dimensions: Wire Size .05 – 1.3 MMSQ | Product Length 39.37 MM | Product Length 1.55 INCH | Wire Size 30 – 16 AWG | Electrical Characteristics: Operating Voltage 300

Download 3PCV-06-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3PCV-06-006 - TE Connectivity - PCB symbol
click to zoom

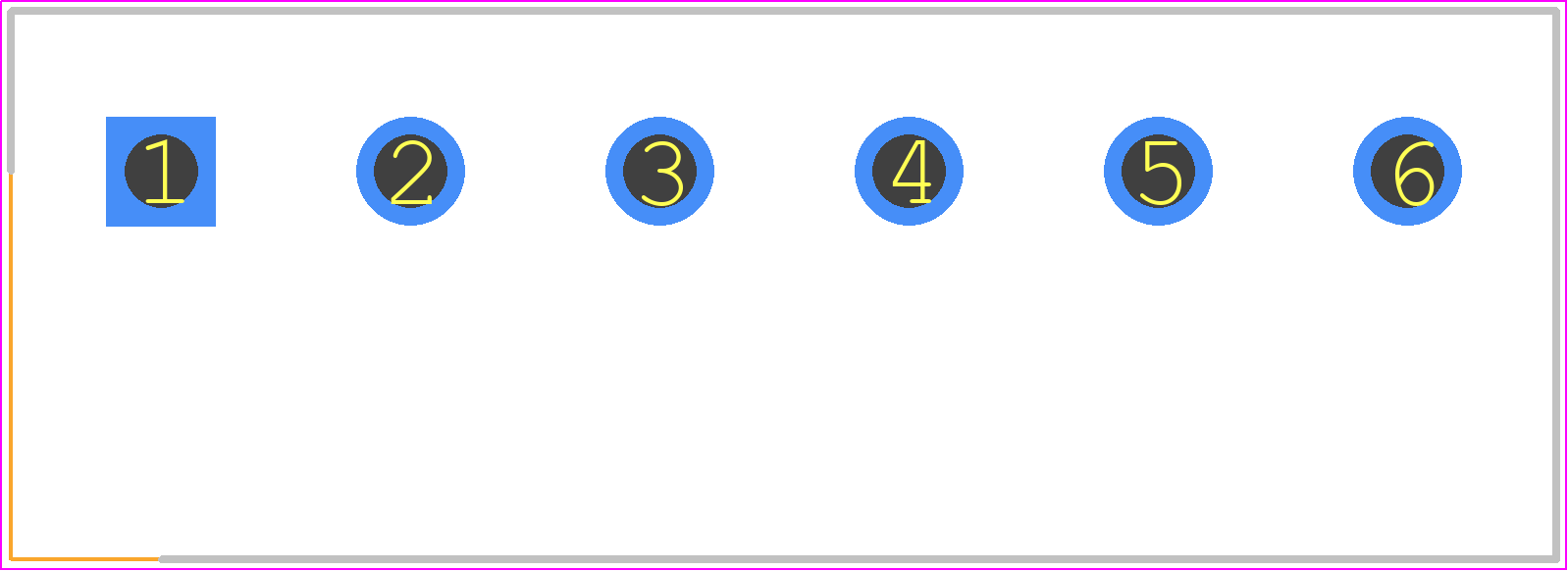

PCB Footprints
3PCV-06-006 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 3PCV-06-006
click to zoom
3D Models
3PCV-06-006 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 3PCV-06-006
click to zoom

3PCV-06-006 Details

  • Manufacturer Part Number:

    3PCV-06-006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    41 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    POLYPROPYLENE, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.3 mm2

  • Wire Gauge:

    16 AWG

3PCV-06-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 3PCV-06-006 is 0.5-0.8 Nm (0.37-0.59 lbf-in).
  • Yes, the 3PCV-06-006 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • The 3PCV-06-006 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes. However, it's recommended to use additional protection measures for outdoor use, such as conformal coating or potting.
  • The 3PCV-06-006 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • No, the 3PCV-06-006 is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3PCV-06-006 Overview

Use the download button to access the 3PCV-06-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
