3PCV-08-006 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals of 3PCV-08-006 is 0.5-0.8 Nm (0.37-0.59 lbf-in).
• Can I use this connector in a high-vibration environment?
  Yes, the 3PCV-08-006 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-200 Hz.
• Is this connector suitable for outdoor use?
  Yes, the 3PCV-08-006 is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, and can operate in temperatures ranging from -40°C to 125°C.
• Can I use this connector with wire sizes other than 24-14 AWG?
  While the datasheet specifies 24-14 AWG wire sizes, the 3PCV-08-006 can accommodate smaller wire sizes with the use of wire adapters or terminals. However, it's essential to ensure the wire size and material meet the connector's electrical and mechanical requirements.

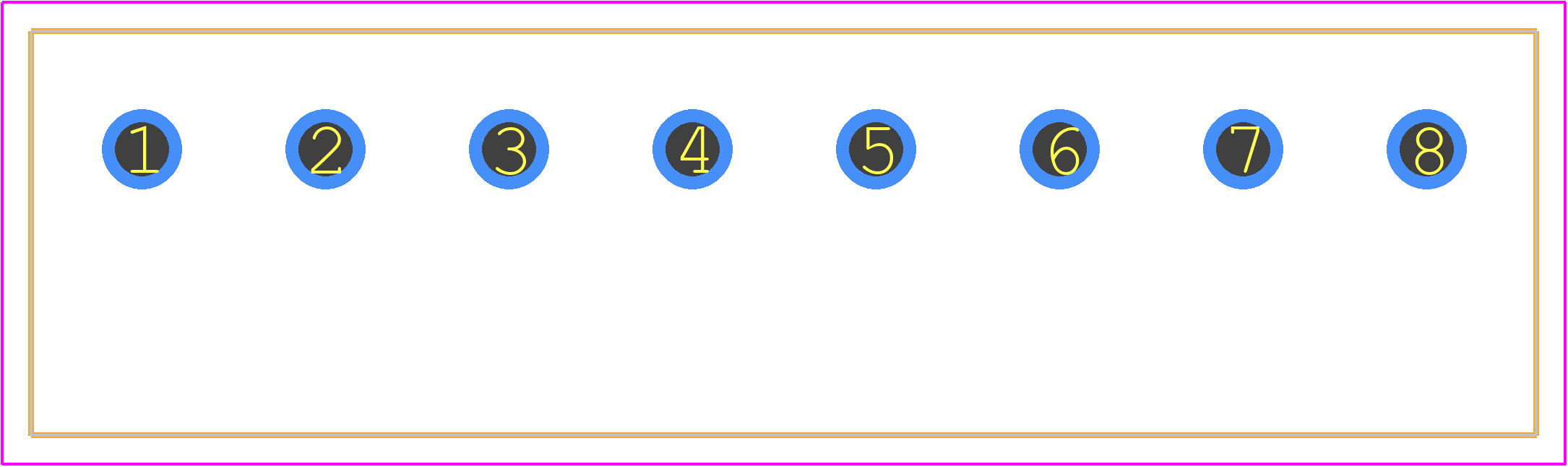

• Are there any specific PCB layout considerations for this connector?
  Yes, to ensure reliable operation and prevent damage, it's recommended to follow TE Connectivity's PCB layout guidelines for the 3PCV-08-006. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and using a solder mask to prevent solder bridging.
