3SK292(TE85R,F) - Toshiba

Description: RF MOSFET Transistors RF High Freq VHF/UHF SMQ 4-Pin N-Ch 0.1

Download 3SK292(TE85R,F) Model

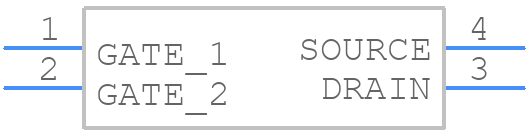

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
3SK292(TE85R,F) - Toshiba PCB footprint - Other - Other - 3SK292(TE85R,F)-1
click to zoom
3D Models
3SK292(TE85R,F) - Toshiba  - 3D model - Other - 3SK292(TE85R,F)-1
click to zoom

3SK292(TE85R,F) Details

  • Manufacturer Part Number:

    3SK292(TE85R,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SMQ, 2-3J1A, 4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    12.5 V

  • Drain Current-Max (ID):

    0.03 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    0.04 pF

  • Highest Frequency Band:

    VERY HIGH FREQUENCY BAND

  • JESD-30 Code:

    R-PDSO-G4

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    DUAL GATE, DEPLETION MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Gain-Min (Gp):

    23.5 dB

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

3SK292(TE85R,F) Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern is suggested. Refer to the Toshiba application note for more details.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
  • Handle the device by the body or pins, avoid touching the die, and use an anti-static wrist strap or mat. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
  • Yes, the 3SK292(TE85R,F) is qualified for automotive and high-reliability applications. However, additional testing and validation may be required. Consult with Toshiba's sales team or application engineers for more information.
  • Use a soldering temperature of 260°C (max) for 10 seconds (max) when using a soldering iron. For reflow soldering, use a peak temperature of 245°C (max) with a dwell time of 30 seconds (max).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3SK292(TE85R,F) Overview

Use the download button to access the 3SK292(TE85R,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3SK29, or try a keyword search, such as RF Small Signal Field-Effect Transistors
