3SK294(TE85L,F) - Toshiba

Description: RF MOSFET Transistors RF High Freq VHF/UHF SMQ 4-Pin N-Ch 0.1

Download 3SK294(TE85L,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

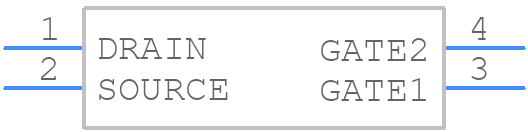

3SK294(TE85L,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
3SK294(TE85L,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 2-2K1B
click to zoom

3SK294(TE85L,F) Details

  • Manufacturer Part Number:

    3SK294(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    0.03 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Number of Elements:

    1

  • Operating Mode:

    DUAL GATE, ENHANCEMENT MODE

  • Operating Temperature-Max:

    125 °C

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

3SK294(TE85L,F) Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the junction temperature is kept below the maximum rating of 150°C.
  • The 3SK294(TE85L,F) has built-in ESD protection, but it is still recommended to follow standard ESD handling precautions to prevent damage.
  • Yes, the 3SK294(TE85L,F) is suitable for high-reliability and automotive applications, but additional testing and qualification may be required.
  • Consult the datasheet and application notes for troubleshooting guidelines, and contact Toshiba support if issues persist.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3SK294(TE85L,F) Overview

Use the download button to access the 3SK294(TE85L,F) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 3SK29, or try a keyword search, such as RF Small Signal Field-Effect Transistors
