4-1393479-5 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

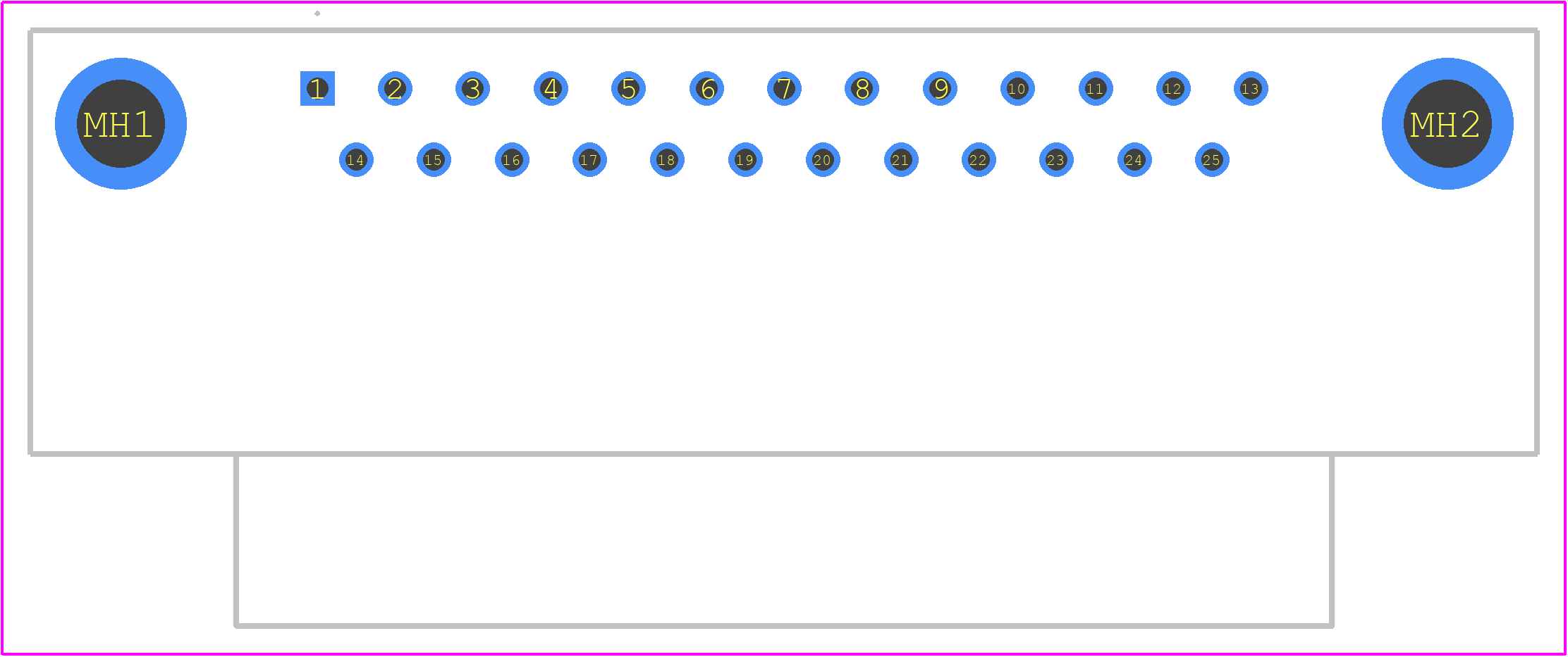

4-1393479-5 - TE Connectivity PCB footprint - Other - Other - 4-1393479-5-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4-1393479-5
Part Number 4-1393479-5
Manufacturer TE Connectivity
Pin Count 27
Part Category Connector
Package Category Other
Footprint Name Other - 4-1393479-5-2
Released Date May 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

4-1393479-5 Details

Manufacturer Part Number:
4-1393479-5
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
9
Additional Feature:
ROHS AND ELV COMPLIANT
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.509 inch
Body Depth:
0.59 inch
Body Length:
2.1 inch
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
STAGGERED
Contact Resistance:
15 mΩ
Contact Style:
RND PIN-SKT
DIN Conformance:
YES
Dielectric Withstanding Voltage:
1000VAC V
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
2.224 N
Insulation Resistance:
5000000000 Ω
MIL Conformance:
NO
Mating Contact Pitch:
0.108 inch
Mating Contact Row Spacing:
0.112 inch
Mixed Contacts:
NO
Mounting Option 1:
HOLE .112-.124
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.84 mm
Plating Thickness:
30u inch
Rated Current (Signal):
6 A
Reference Standard:
UL
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
3/B
Terminal Length:
0.126 inch
Terminal Pitch:
2.76 mm
Termination Type:
SOLDER
Total Number of Contacts:
25
Withdrawl Force-Min:
2.224 N
