4-1571551-6 - TE Connectivity

Description: 20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Download 4-1571551-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4-1571551-6 - TE Connectivity - PCB symbol
click to zoom

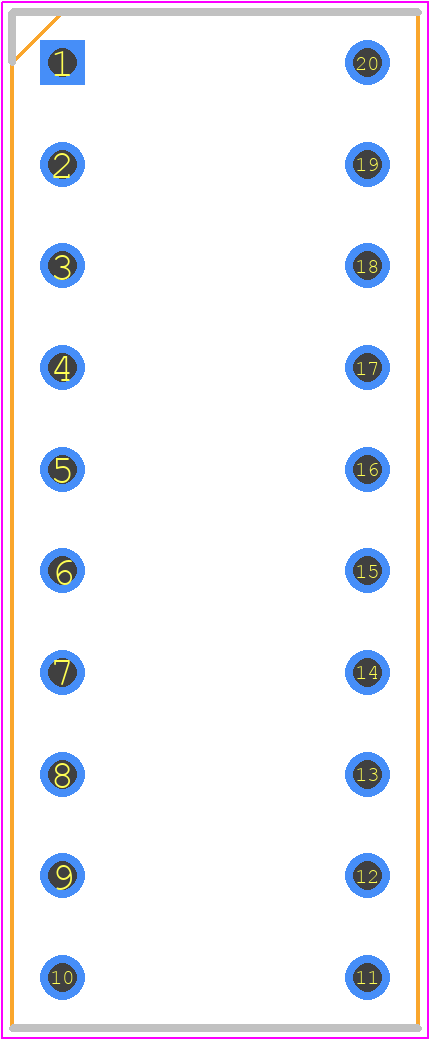

PCB Footprints
4-1571551-6 - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 4-1571551-6_2025
click to zoom
3D Models
4-1571551-6 - TE Connectivity - 3D model - Dual-In-Line Sockets - 4-1571551-6_2025
click to zoom

4-1571551-6 Details

  • Manufacturer Part Number:

    4-1571551-6

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Housing Material:

    POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-THERMOPLASTIC POLYESTER

  • JESD-609 Code:

    e3

  • Number of Contacts:

    20

4-1571551-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 4-1571551-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 4-1571551-6 connector is designed to be robust, it's crucial to assess the specific vibration requirements of your application. TE Connectivity provides vibration testing data, but it's recommended to consult with their technical support to determine the connector's suitability for your specific use case.
  • The 4-1571551-6 connector is designed to operate within a specific temperature range (-40°C to 125°C). For harsh environments, it's essential to consult TE Connectivity's environmental testing data and application notes. Additionally, consider consulting with their technical support to ensure the connector meets your specific environmental requirements.
  • The mating cycle life of the 4-1571551-6 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's technical support for more detailed information and guidance on mating cycle life expectations.
  • Yes, there are specific PCB layout and design considerations for the 4-1571551-6 connector. It's essential to follow TE Connectivity's recommended PCB layout guidelines and design recommendations to ensure proper connector performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4-1571551-6 Overview

Use the download button to access the 4-1571551-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4-157, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
