The maximum switching frequency of the 40.61.9.048.0000 relay module is 20 Hz, but it's recommended to consult FINDER's application notes for specific usage guidelines.
The 40.61.9.048.0000 relay module is designed to operate within a temperature range of -40°C to 85°C. However, derating may be necessary for high-temperature applications. Consult FINDER's documentation for specific guidance.
FINDER recommends following the PCB layout and spacing guidelines provided in their application notes and datasheet to ensure proper thermal management and to prevent electrical noise interference.
The 40.61.9.048.0000 relay module is not designed for safety-critical applications. If you need a relay module for a safety-critical application, consider using a module with relevant certifications (e.g., IEC 61508, ISO 26262) and consult with FINDER's technical support team.
The expected lifespan of the relay contacts in the 40.61.9.048.0000 module is around 100,000 to 200,000 cycles, depending on the operating conditions and load characteristics. Consult FINDER's documentation for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
40.61.9.048.0000 Overview

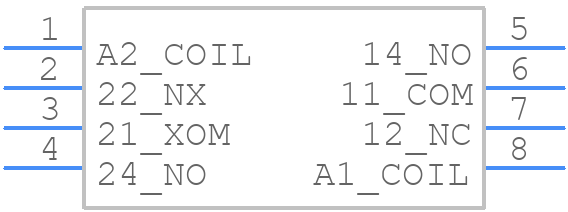

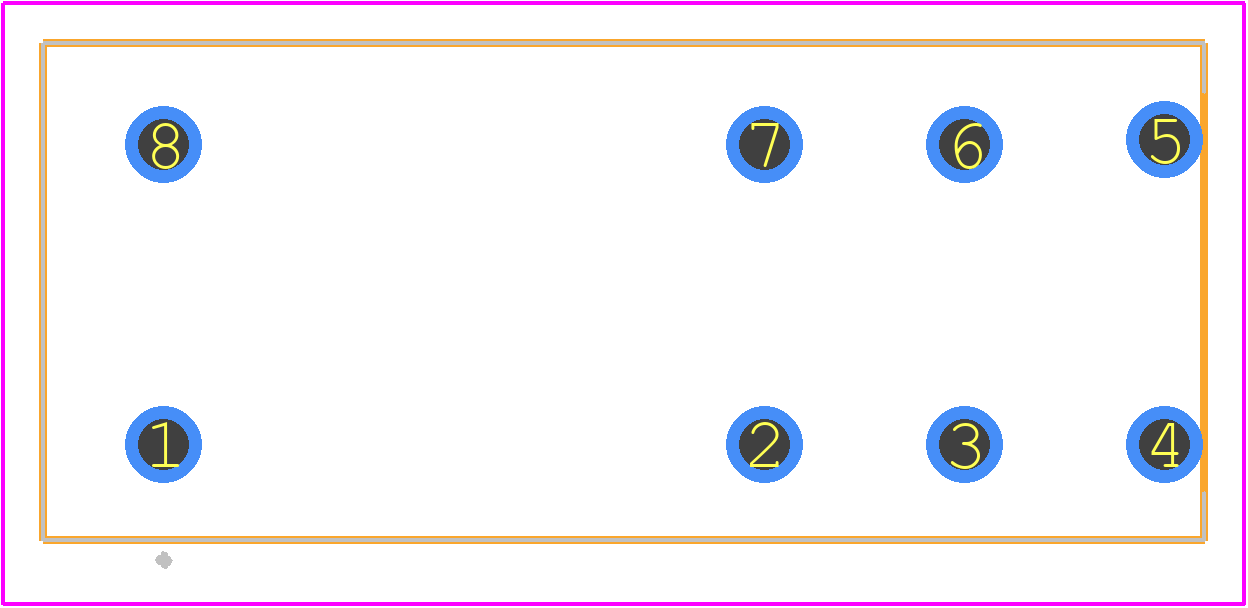

Use the download button to access the 40.61.9.048.0000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 40.61,
or try a keyword search, such as Power/Signal Relays
