400HXG150MEFCSN25X25 - Rubycon

Description: 150 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download 400HXG150MEFCSN25X25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
400HXG150MEFCSN25X25 - Rubycon - PCB symbol
click to zoom
PCB Footprints

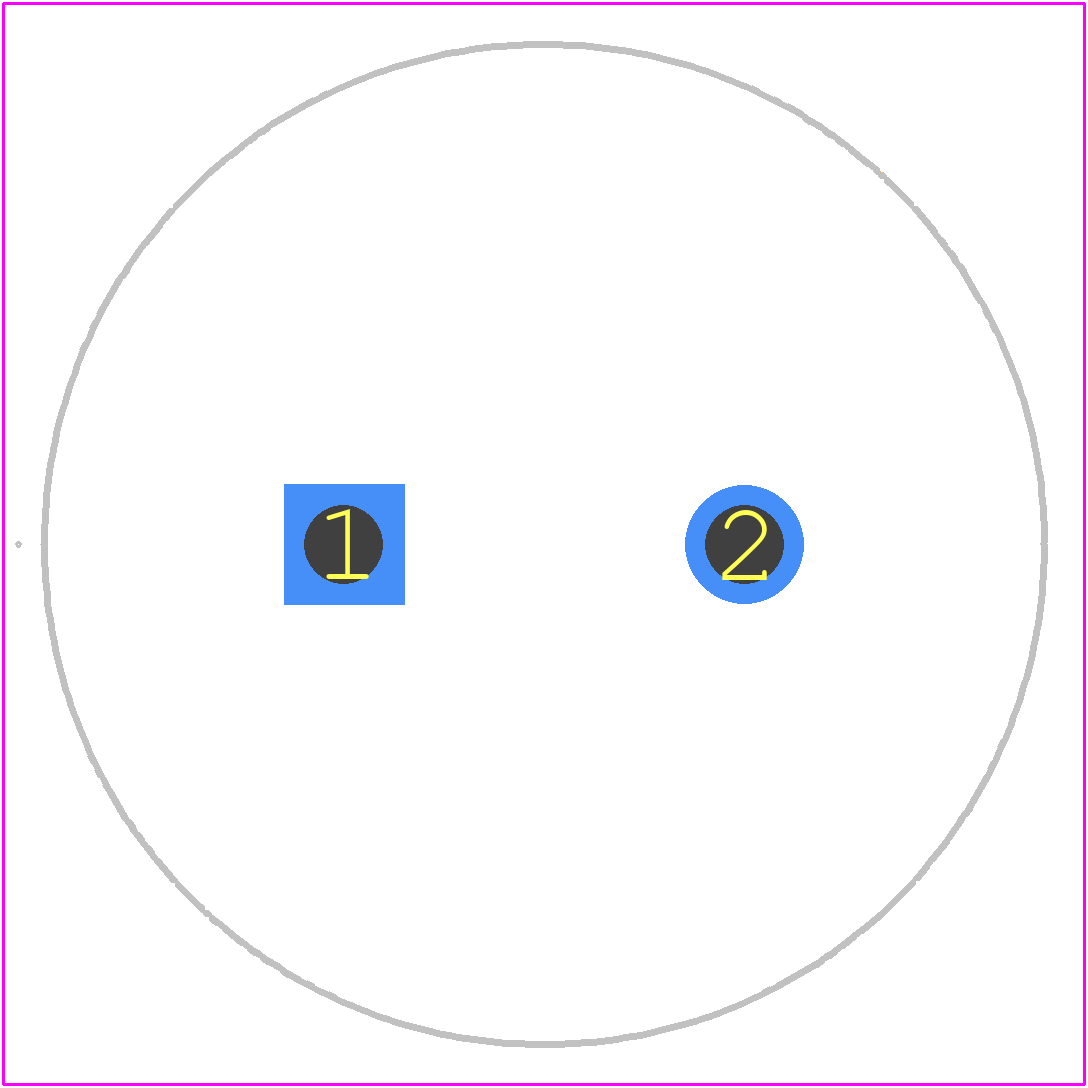

400HXG150MEFCSN25X25 - Rubycon PCB footprint - Other - Other - 25mm x 25mm
click to zoom
3D Models
400HXG150MEFCSN25X25 - Rubycon - 3D model - Other - 25mm x 25mm
click to zoom

400HXG150MEFCSN25X25 Details

  • Manufacturer Part Number:

    400HXG150MEFCSN25X25

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.73485 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1430 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

400HXG150MEFCSN25X25 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 400HXG150MEFCSN25X25 is designed to operate in temperatures up to 125°C, but its capacitance and ESR may degrade at higher temperatures. Consult Rubycon's temperature derating charts for specific information.
  • The 400HXG150MEFCSN25X25 has a relatively low ESR, making it suitable for high-frequency applications up to several hundred kHz. However, it's essential to consider the capacitor's impedance and resonance frequency in your specific design.
  • Rubycon recommends following standard mounting and handling procedures for electrolytic capacitors, including avoiding excessive mechanical stress, bending, or vibration, and using a soldering iron with a temperature below 350°C.
  • The 400HXG150MEFCSN25X25 meets various safety standards, including RoHS, REACH, and UL. Ensure you comply with relevant safety regulations and guidelines when designing and manufacturing your product.
