400MXG150MEFCSN25X25 - Rubycon

Description: Rubycon 150μF 400 V dc Aluminium Electrolytic Capacitor, MXG Series 3000h 25 Dia. x 25mm

Download 400MXG150MEFCSN25X25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
400MXG150MEFCSN25X25 - Rubycon - PCB symbol
click to zoom
PCB Footprints

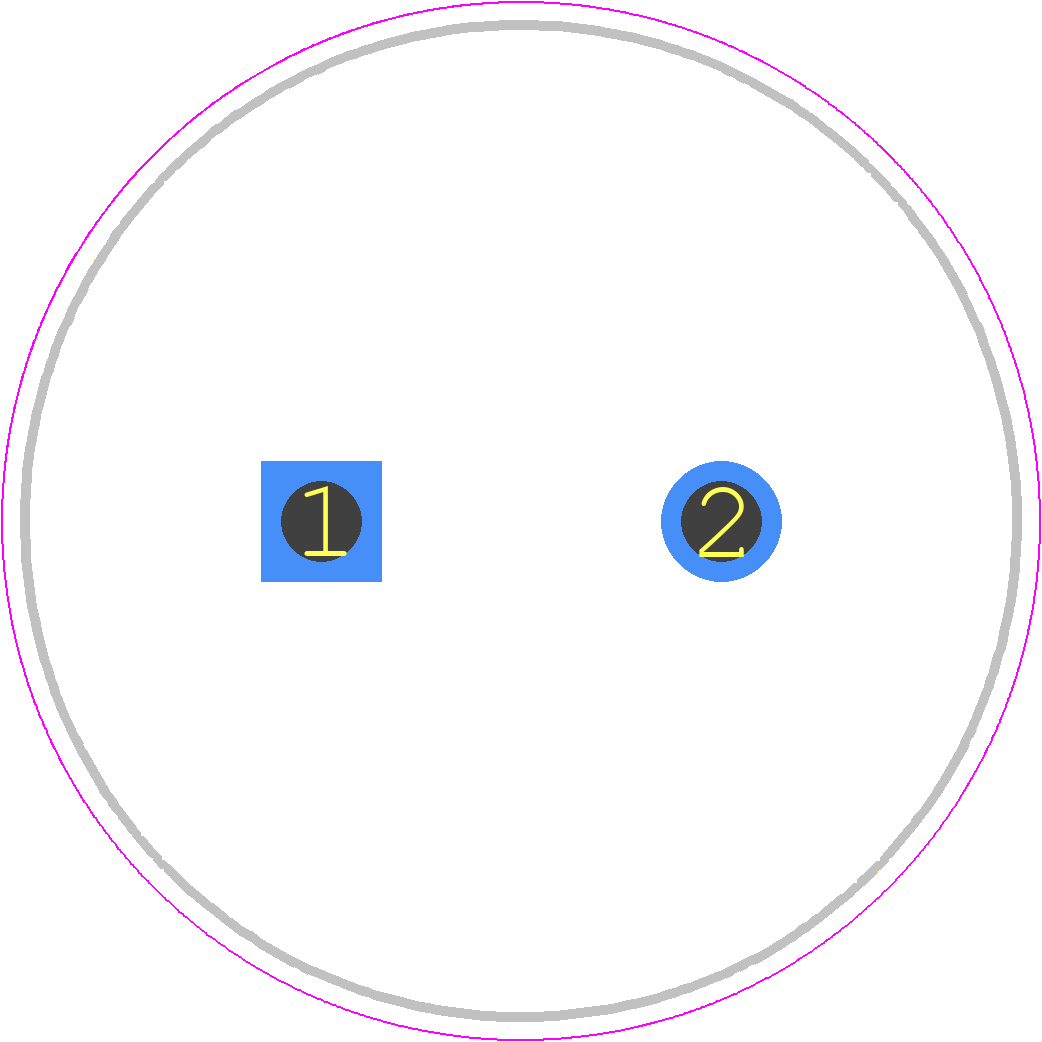

400MXG150MEFCSN25X25 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 400MXG150
click to zoom
3D Models
400MXG150MEFCSN25X25 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 400MXG150
click to zoom

400MXG150MEFCSN25X25 Details

  • Manufacturer Part Number:

    400MXG150MEFCSN25X25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.73485 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1040 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

400MXG150MEFCSN25X25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 400MXG150MEFCSN25X25 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 400MXG150MEFCSN25X25 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • The 400MXG150MEFCSN25X25 is rated for operation up to 125°C, but derating is recommended for temperatures above 105°C to ensure reliability and longevity.
  • The 400MXG150MEFCSN25X25 should be stored in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70% to prevent moisture absorption.
  • Yes, the 400MXG150MEFCSN25X25 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
