Please enter a minimum 3 letters or numbers
Technical Content
Part Image

400MXH820MEFCSN30X60 - Rubycon

Description: 820 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C

Download 400MXH820MEFCSN30X60 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
400MXH820MEFCSN30X60 - Rubycon - PCB symbol
click to zoom
PCB Footprints

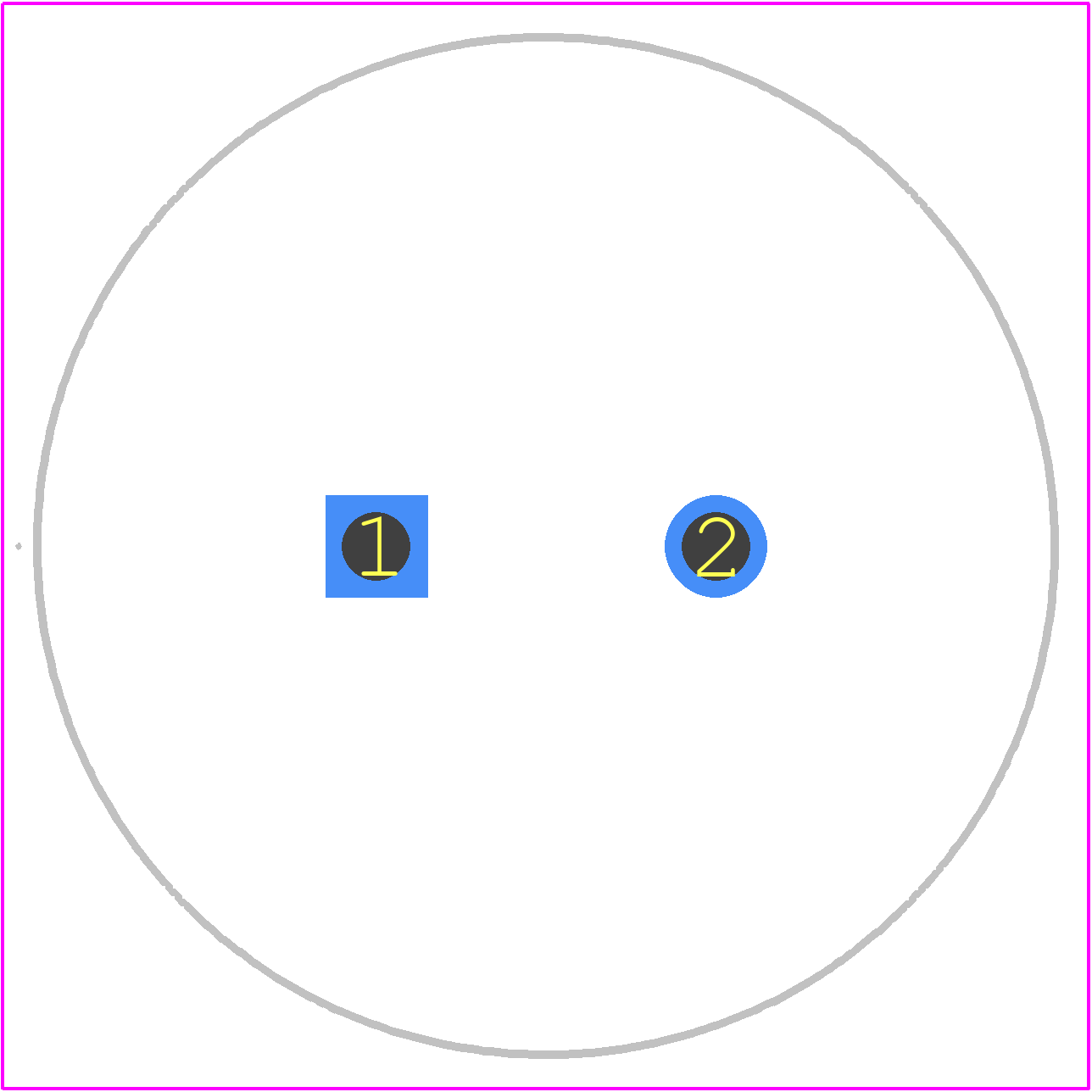

400MXH820MEFCSN30X60 - Rubycon PCB footprint - Other - Other - 30mm x 60mm
click to zoom
3D Models
400MXH820MEFCSN30X60 - Rubycon - 3D model - Other - 30mm x 60mm
click to zoom

400MXH820MEFCSN30X60 Details

  • Manufacturer Part Number:

    400MXH820MEFCSN30X60

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    820 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.71814 mA

  • Length:

    60 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    2760 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

400MXH820MEFCSN30X60 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 400MXH820MEFCSN30X60 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 400MXH820MEFCSN30X60 is designed to withstand vibrations up to 10G acceleration, making it suitable for use in high-vibration environments.
  • The ESR of the 400MXH820MEFCSN30X60 is relatively low, which means it can handle high-frequency switching and reduce energy losses, making it suitable for high-performance applications.
  • Yes, the 400MXH820MEFCSN30X60 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • The recommended storage condition for the 400MXH820MEFCSN30X60 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

400MXH820MEFCSN30X60 Overview

Use the download button to access the 400MXH820MEFCSN30X60 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 400MX, or try a keyword search, such as Aluminum Electrolytic Capacitors

Parts related to 400MXH820MEFCSN30X60

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
