400MXK390MEFCSN25X40 - Rubycon

Description: 390 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download 400MXK390MEFCSN25X40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
400MXK390MEFCSN25X40 - Rubycon - PCB symbol
click to zoom
PCB Footprints

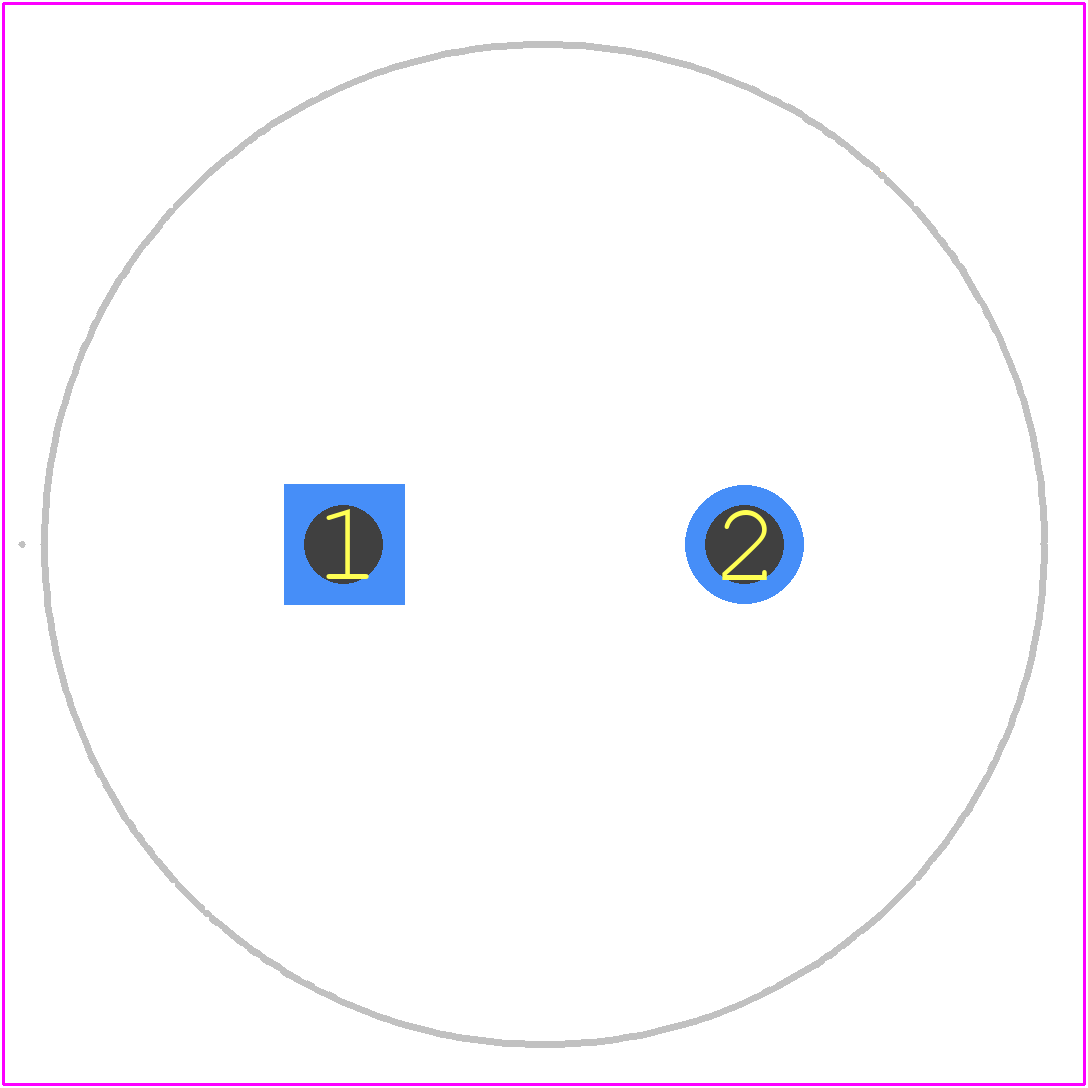

400MXK390MEFCSN25X40 - Rubycon PCB footprint - Other - Other - 25x40mm_2026-1
click to zoom
3D Models
400MXK390MEFCSN25X40 - Rubycon - 3D model - Other - 25x40mm_2026-1
click to zoom

400MXK390MEFCSN25X40 Details

  • Manufacturer Part Number:

    400MXK390MEFCSN25X40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    390 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.18491 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1850 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

400MXK390MEFCSN25X40 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The ESR of the 400MXK390MEFCSN25X40 capacitor decreases with increasing frequency. According to Rubycon's application notes, the ESR at 100 kHz is approximately 1/3 of the ESR at 100 Hz.
  • The 400MXK390MEFCSN25X40 capacitor has a maximum operating temperature of 105°C, making it suitable for most industrial and automotive applications. However, it's essential to consider the derating curves and thermal management in the system design.
  • Rubycon recommends following the J-STD-020D.1 standard for soldering and the IEC 60068-2-20 standard for mounting. It's essential to avoid excessive mechanical stress, bending, or twisting during the assembly process.
  • The capacitance of the 400MXK390MEFCSN25X40 capacitor decreases with increasing temperature. According to Rubycon's datasheet, the capacitance at 105°C is approximately 90% of the nominal value at 20°C.
