400UDP1L1BLKM7RE footprint, schematic symbol and 3D model by E-Switch

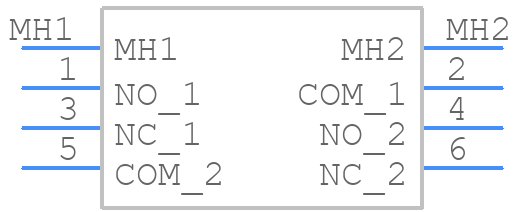

Symbol

PCB Footprints

3D Models

400UDP1L1BLKM7RE Details

The recommended operating temperature range for the 400UDP1L1BLKM7RE is -20°C to 85°C, as per E-Switch Inc's general guidelines for their pushbutton switches.
Yes, the 400UDP1L1BLKM7RE is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments, such as industrial control panels or transportation systems.
The typical lifecycle of the 400UDP1L1BLKM7RE is around 500,000 to 1,000,000 cycles, depending on the operating conditions and usage patterns.
Yes, the 400UDP1L1BLKM7RE is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in global markets.
The recommended torque for mounting the 400UDP1L1BLKM7RE is 0.5 N·m to 1.5 N·m, depending on the specific application and mounting requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 400UDP1L1BLKM7RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 400UD, or try a keyword search, such as Toggle Switches
