400VXH390MEFCSN30X35 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 400VXH390MEFCSN30X35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
400VXH390MEFCSN30X35 - Rubycon - PCB symbol
click to zoom
PCB Footprints

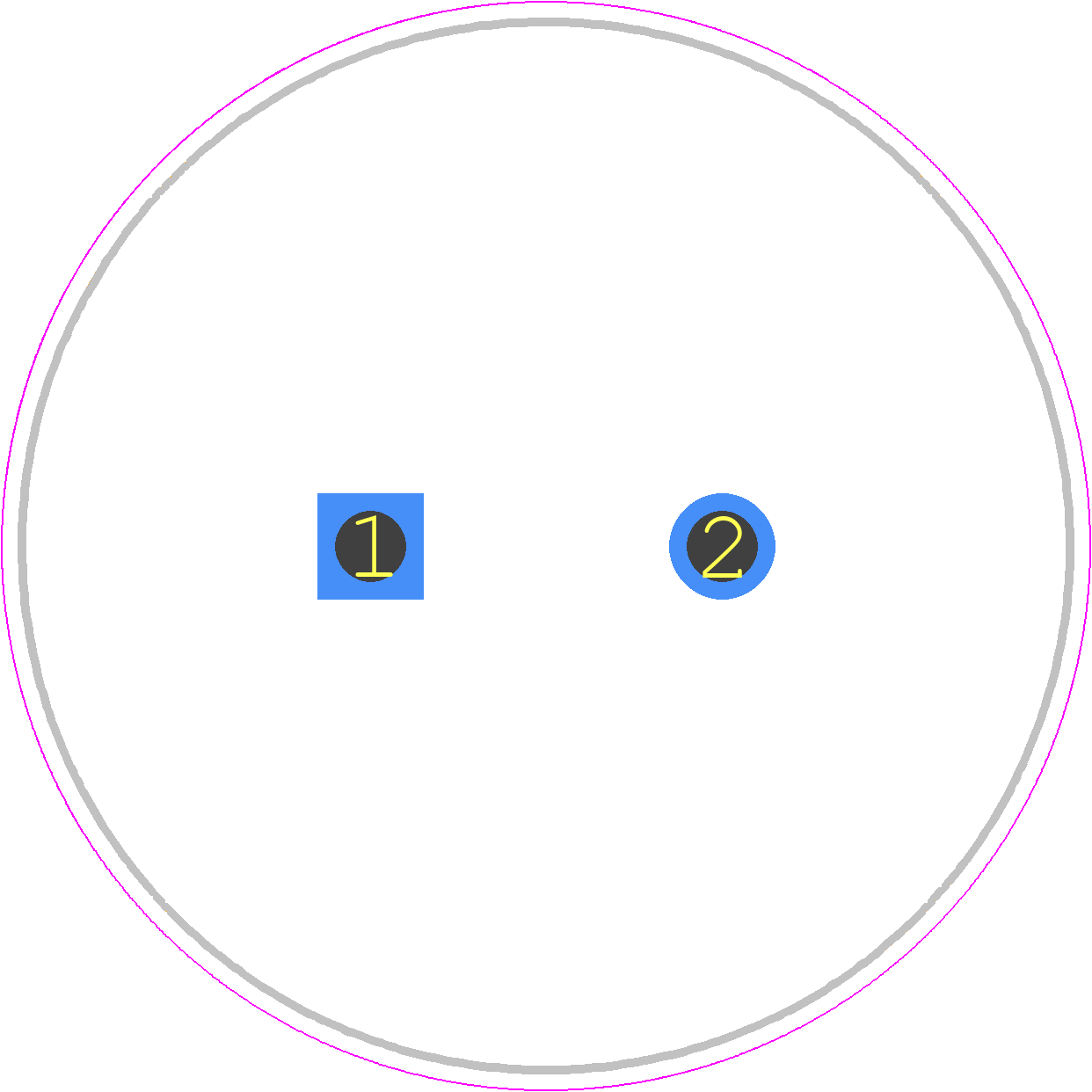

400VXH390MEFCSN30X35 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*35
click to zoom
3D Models
400VXH390MEFCSN30X35 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30*35
click to zoom

400VXH390MEFCSN30X35 Details

  • Manufacturer Part Number:

    400VXH390MEFCSN30X35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    390 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.18491 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1720 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

400VXH390MEFCSN30X35 Frequently Asked Questions (FAQs)

  • Rubycon recommends derating the voltage rating by 10-20% to ensure reliable operation and to account for voltage spikes or surges in the circuit.
  • The 400VXH390MEFCSN30X35 is designed to operate up to 105°C, but its capacitance and ESR may degrade at higher temperatures. Consult Rubycon's application notes for temperature derating guidelines.
  • The 400VXH390MEFCSN30X35 is designed to meet the vibration and shock requirements of IEC 60068-2-6 and IEC 60068-2-27, respectively. However, it's essential to consult Rubycon's application notes and perform thorough testing to ensure the capacitor meets the specific requirements of your application.
  • Rubycon recommends following the soldering profile specified in J-STD-020D, with a peak temperature of 260°C and a dwell time of 10-30 seconds. Consult Rubycon's application notes for more detailed guidance.
  • Yes, the 400VXH390MEFCSN30X35 is suitable for use in DC-DC converters and switching power supplies due to its low ESR and high ripple current rating. However, ensure that the capacitor is properly sized and derated for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

400VXH390MEFCSN30X35 Overview

Use the download button to access the 400VXH390MEFCSN30X35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 400VX, or try a keyword search, such as Aluminum Electrolytic Capacitors
