4114R-1-101LF - Bourns

Description: Resistor Networks DIP 14 pin 100R 2% Bourns Isolated Resistor Network 100Ω ±2% 7 Resistors, 2W Total, DIP package 4100R Through Hole

Download 4114R-1-101LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4114R-1-101LF - Bourns - PCB symbol
click to zoom
PCB Footprints

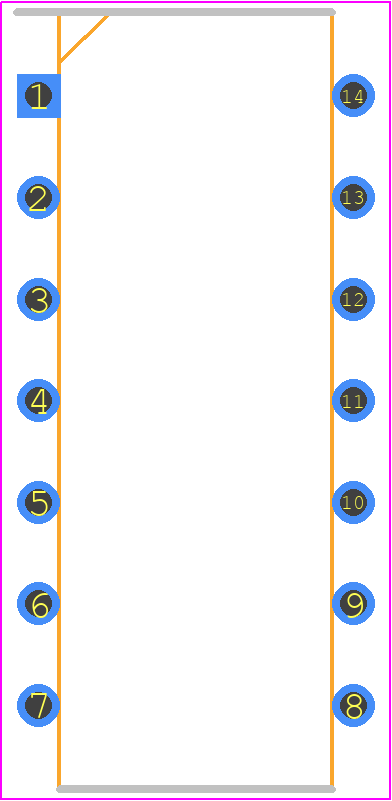

4114R-1-101LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-14
click to zoom
3D Models
4114R-1-101LF - Bourns - 3D model - Dual-In-Line Packages - DIP-14
click to zoom

4114R-1-101LF Details

  • Manufacturer Part Number:

    4114R-1-101LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    100 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    7

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    19.43 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    100 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    7731

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4114R-1-101LF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 4114R-1-101LF is a rectangular pad with dimensions of 1.3mm x 0.8mm, with a 0.5mm diameter hole in the center for the pin.
  • The 4114R-1-101LF has a thermal resistance of 250°C/W. To handle thermal considerations, ensure good airflow around the component, use a heat sink if necessary, and avoid overheating the component.
  • The recommended soldering profile for the 4114R-1-101LF is a peak temperature of 240°C, with a dwell time of 3-5 seconds. Ensure that the component is not exposed to temperatures above 260°C.
  • Use a soft brush and a mild detergent to clean the component. Avoid using harsh chemicals or abrasive materials that may damage the component. Ensure the component is dry and free of contaminants before assembly.
  • Store the 4114R-1-101LF in a dry, cool place, away from direct sunlight and moisture. Handle the component by the body, avoiding touching the pins or electrical contacts. Use anti-static packaging and handling procedures to prevent ESD damage.
