4114R-1-102LF - Bourns

Description: Resistor Networks & Arrays 14pin 1Kohms Isolated Low Profile

Download 4114R-1-102LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4114R-1-102LF - Bourns - PCB symbol
click to zoom

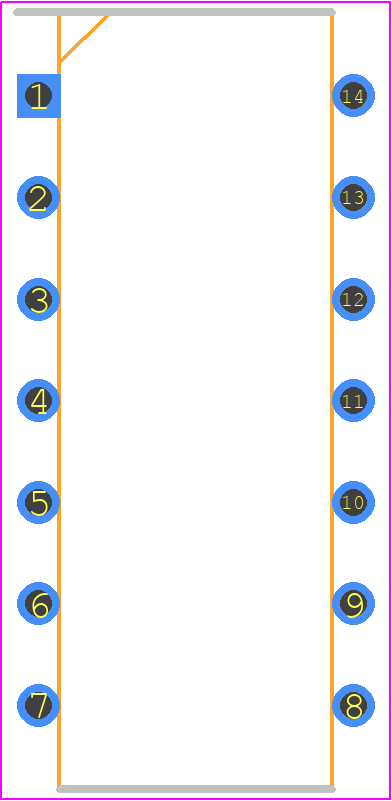

PCB Footprints
4114R-1-102LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4114R-1-221LF
click to zoom
3D Models
4114R-1-102LF - Bourns - 3D model - Dual-In-Line Packages - 4114R-1-221LF
click to zoom

4114R-1-102LF Details

  • Manufacturer Part Number:

    4114R-1-102LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    1000 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    7

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    19.43 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    1000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    7731

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4114R-1-102LF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 4114R-1-102LF is a rectangular pad with dimensions of 1.3mm x 0.8mm, with a 0.5mm diameter hole in the center for the pin.
  • Yes, the 4114R-1-102LF is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at extreme temperatures.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Hold the component in place with tweezers and apply gentle pressure while soldering.
  • Store the 4114R-1-102LF in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical contacts to prevent damage or contamination.
  • Yes, the 4114R-1-102LF is designed to withstand moderate vibration and shock. However, it's essential to ensure the device is properly secured to the PCB and the PCB is securely fastened to the system to prevent damage or dislodging.
