4114R-1-472LF footprint, schematic symbol and 3D model by Bourns

Symbol

click to zoom

PCB Footprints

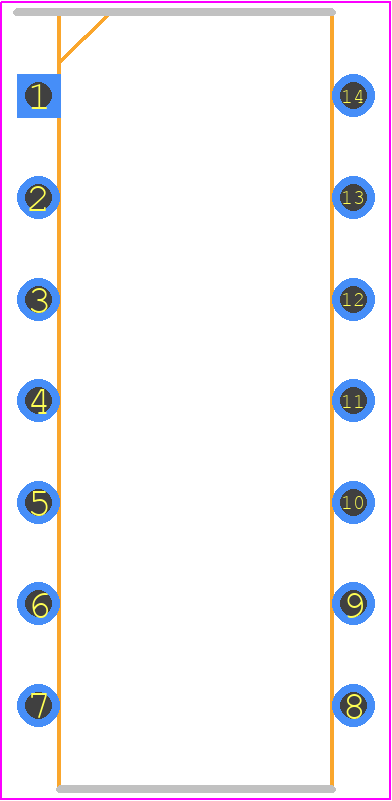

4114R-1-472LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4114R-1-472LF

click to zoom

3D Models

4114R-1-472LF - Bourns - 3D model - Dual-In-Line Packages - 4114R-1-472LF

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4114R-1-472LF
Part Number 4114R-1-472LF
Manufacturer Bourns
Pin Count 14
Part Category Resistor Network
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 4114R-1-472LF
Released Date Jun 11, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

4114R-1-472LF Details

Manufacturer Part Number:
4114R-1-472LF
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP, ROHS COMPLIANT
Reach Compliance Code:
Not Compliant
Country Of Origin:
Costa Rica
ECCN Code:
EAR99
HTS Code:
8533.21.00.60
Factory Lead Time:
7 Weeks
Manufacturer:
Bourns Inc
YTEOL:
7.15
Construction:
Molded
Element Power Dissipation:
0.25 W
First Element Resistance:
4700 Ω
JESD-609 Code:
e3
Lead Length:
3.43 mm
Lead Spacing:
2.54 mm
Mounting Feature:
THROUGH HOLE MOUNT
Network Type:
ISOLATED
Number of Elements:
1
Number of Functions:
7
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Height:
4.57 mm
Package Length:
19.43 mm
Package Shape:
RECTANGULAR PACKAGE
Package Style:
DIP
Package Width:
7.87 mm
Rated Power Dissipation (P):
2 W
Rated Temperature:
70 °C
Resistance:
4700 Ω
Resistor Type:
ARRAY/NETWORK RESISTOR
Size Code:
7731
Surface Mount:
NO
Technology:
METAL GLAZE/THICK FILM
Temperature Coefficient:
100 ppm/°C
Temperature Coefficient Tracking:
50 ppm/°C
Terminal Finish:
Matte Tin (Sn)
Terminal Shape:
FLAT
Tolerance:
2%
Working Voltage:
100 V

4114R-1-472LF Frequently Asked Questions (FAQs)

Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and minimize thermal resistance.
Proper thermal management is crucial for the 4114R-1-472LF. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and land pattern. Bourns also provides thermal resistance values in the datasheet to help with thermal design.
The maximum operating temperature range for the 4114R-1-472LF is -40°C to +125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
The 4114R-1-472LF is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you should consult with Bourns or perform additional testing to ensure the device's reliability.
Follow standard ESD handling and storage procedures to prevent damage to the 4114R-1-472LF. Store the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures.

Trust Checks

Expert Contribution

System Verified

Community Approved

4114R-1-472LF Overview

Use the download button to access the 4114R-1-472LF schematic symbol, PCB footprint, and 3D model.
