Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The 4114R-1-681LF has a high power rating, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider adding a heat sink or thermal pad to keep the component within its operating temperature range.
While the datasheet specifies a maximum rated voltage, it's essential to consider the application's specific requirements. In general, it's recommended to operate the component at 80% of its maximum rated voltage to ensure reliability and longevity.
The 4114R-1-681LF is designed for high-frequency applications, but its performance may degrade above a certain frequency. Consult the datasheet and application notes for specific guidance on frequency limitations and potential derating.
To minimize EMI and RFI, follow proper PCB layout and design guidelines, use shielding, and consider adding EMI filters or chokes. Additionally, ensure the component is properly grounded and decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4114R-1-681LF Overview

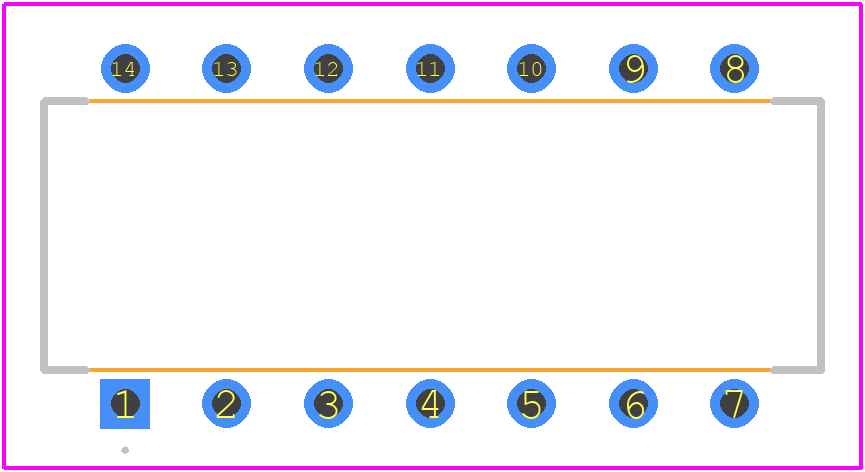

Use the download button to access the 4114R-1-681LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4114R,
or try a keyword search, such as Array/Network Resistors
