423-041-520-102 footprint, schematic symbol and 3D model by EDAC

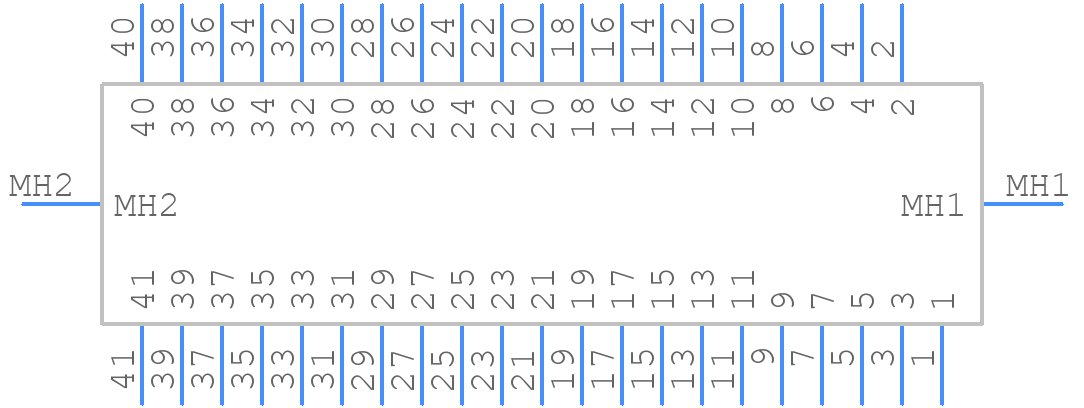

Symbol

click to zoom

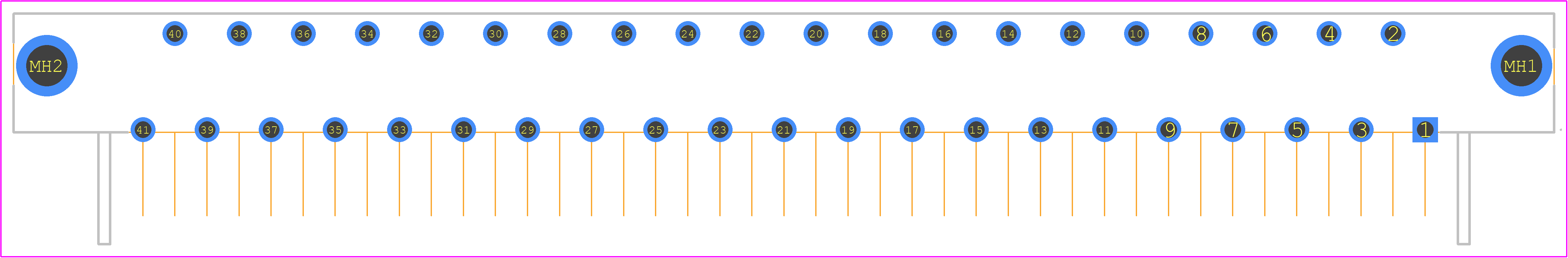

PCB Footprints

423-041-520-102 - EDAC PCB footprint - Other - Other - 423-041-520-102-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 423-041-520-102
Part Number 423-041-520-102
Manufacturer EDAC
Pin Count 43
Part Category Connector
Package Category Other
Footprint Name Other - 423-041-520-102-1
Released Date Apr 26, 2023
Last Modified Date Apr 26, 2023 1:24 PM UTC
Pinout / Pin List Click Here (Member Only)

423-041-520-102 Details

Manufacturer Part Number:
423-041-520-102
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
EDAC Inc
YTEOL:
7
Board Mounting Option:
HOLE 0.128
Body Breadth:
0.327 inch
Body Depth:
0.37 inch
Body Length:
4.87 inch
Connector Type:
CARD EDGE CONNECTOR
Contact Gender:
HERMAPHRODITIC
Contact Pattern:
STAGGERED
Contact Resistance:
10 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
2000VAC V
Filter Feature:
NO
Insertion Force-Max:
4.45 N
Insulation Resistance:
5000000000 Ω
Insulator Color:
GREEN
Insulator Material:
DIALLYL PHTHALATE
Mating Contact Pitch:
0.2 inch
Mating Contact Row Spacing:
0.125 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
7.62 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
10 A
Reference Standard:
UL
Terminal Length:
0.122 inch
Terminal Pitch:
5.08 mm
Termination Type:
SOLDER
Total Number of Contacts:
41
UL Flammability Code:
94V-0
Withdrawl Force-Min:
4.45 N

423-041-520-102 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the EDAC 423-041-520-102 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The EDAC 423-041-520-102 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
The EDAC 423-041-520-102 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
While the EDAC 423-041-520-102 connector is designed for AWG 20-24 wires, it can accommodate smaller wire sizes with the use of wire adapters or ferrules. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

Community Provided

System Verified

Community Approved

423-041-520-102 Overview

Use the download button to access the 423-041-520-102 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 423-0, or try a keyword search, such as Headers and Edge Type Connectors
