4300.0101 - SCHURTER

Description: AC Power Entry Modules SCREW-ON PCB 3-PIN

Download 4300.0101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4300.0101 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

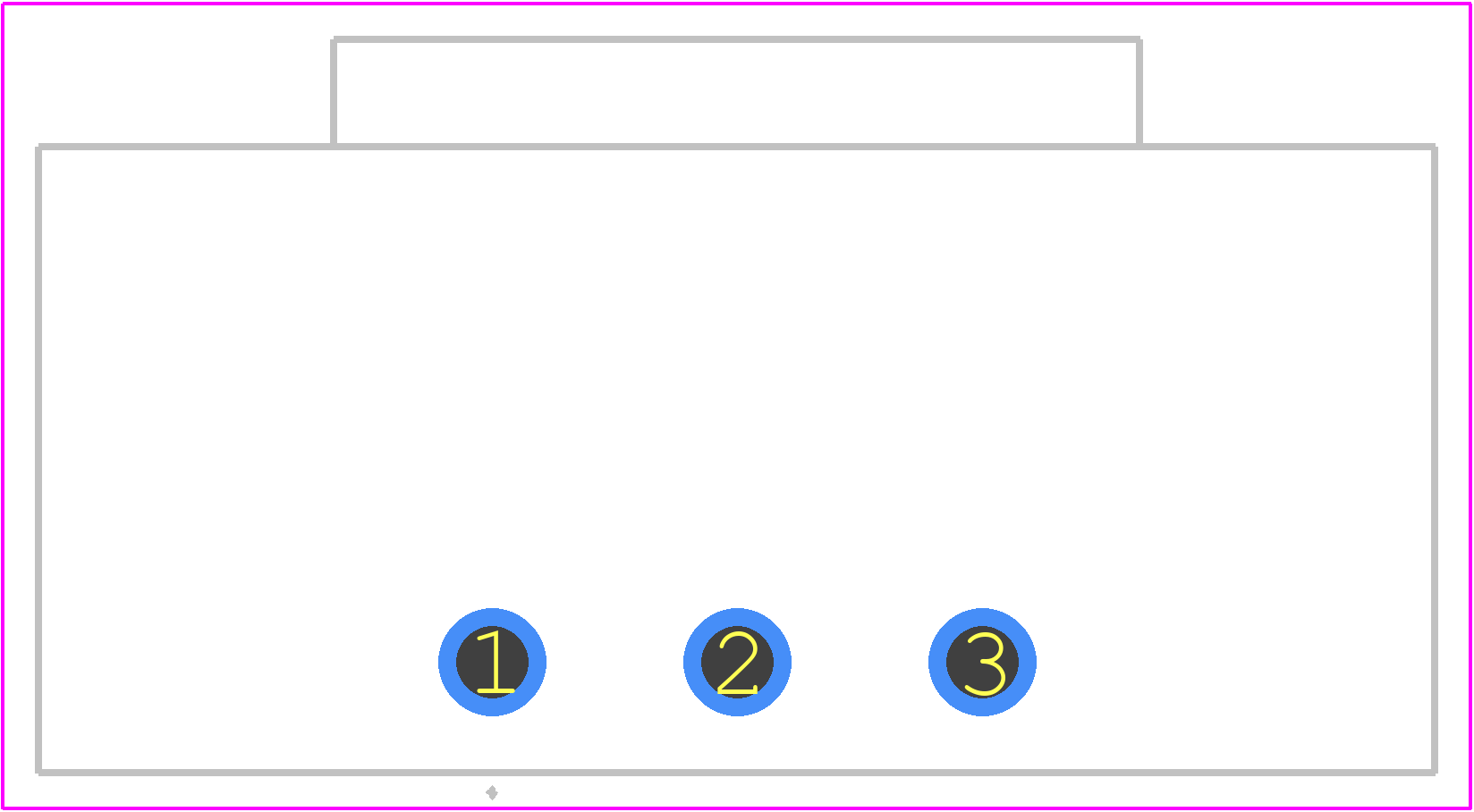

4300.0101 - SCHURTER PCB footprint - Other - Other - 4300.0101-2
click to zoom
3D Models
4300.0101 - SCHURTER - 3D model - Other - 4300.0101-2
click to zoom

4300.0101 Details

  • Manufacturer Part Number:

    4300.0101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C6, UL 498, CSA C22.2, VDE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    TIN/TIN COPPER

  • Contact Finish Termination:

    TIN/TIN COPPER

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3/e2

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.5A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

4300.0101 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 4300.0101 fuse is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the 4300.0101 fuse is designed for high-reliability applications and meets the requirements of IEC 60127-1 and IEC 60127-2 standards.
  • Yes, the 4300.0101 fuse is suitable for automotive applications and meets the requirements of ISO 8820-1 and ISO 8820-2 standards.
  • The minimum order quantity for the 4300.0101 fuse varies depending on the packaging option and the region. Please contact Schurter Electronic Components or an authorized distributor for more information.
  • Yes, the 4300.0101 fuse is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
