43045-0809 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Solder Tab

Download 43045-0809 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43045-0809 - Molex - PCB symbol
click to zoom
PCB Footprints

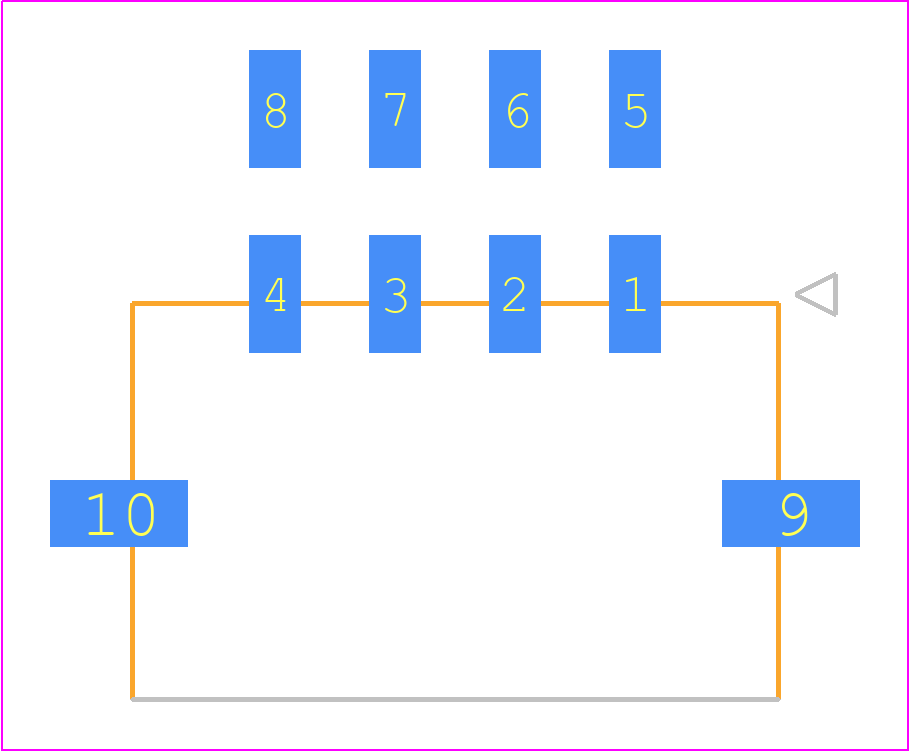

43045-0809 - Molex PCB footprint - Other - Other - 43045-08YY_09101192
click to zoom
3D Models
43045-0809 - Molex - 3D model - Other - 43045-08YY_09101192
click to zoom

43045-0809 Details

  • Manufacturer Part Number:

    43045-0809

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Hong Kong SAR, Japan, Mainland China, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.85

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.606 inch

  • Body Length:

    0.617 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43045-0809 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 43045-0809 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 43045-0809 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 43045-0809 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 43045-0809 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43045-0809 Overview

Use the download button to access the 43045-0809 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43045, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
