43045-1027 - Molex

Description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with PCB Polarizing Peg

Download 43045-1027 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43045-1027 - Molex - PCB symbol
click to zoom
PCB Footprints

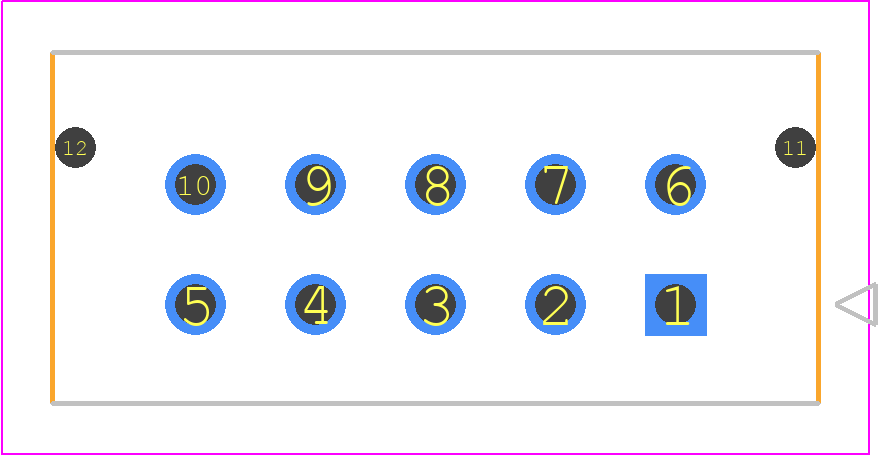

43045-1027 - Molex PCB footprint - Other - Other - 43045-10YY_272829
click to zoom
3D Models
43045-1027 - Molex - 3D model - Other - 43045-10YY_272829
click to zoom

43045-1027 Details

  • Manufacturer Part Number:

    43045-1027

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.6

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    0.735 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43045-1027 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 43045-1027 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The connector is rated for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and UV exposure.
  • The maximum wire size that can be used with the 43045-1027 is 18 AWG (1.0 mm²).
  • The connector is designed for use with PVC-insulated wires, but it can be used with other insulation materials such as Teflon or silicone, as long as the wire meets the specified dimensions and requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43045-1027 Overview

Use the download button to access the 43045-1027 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43045, or try a keyword search, such as Power Connectors
