43045-2011 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 20 Circuits, with Solder Tab

Download 43045-2011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43045-2011 - Molex - PCB symbol
click to zoom
PCB Footprints

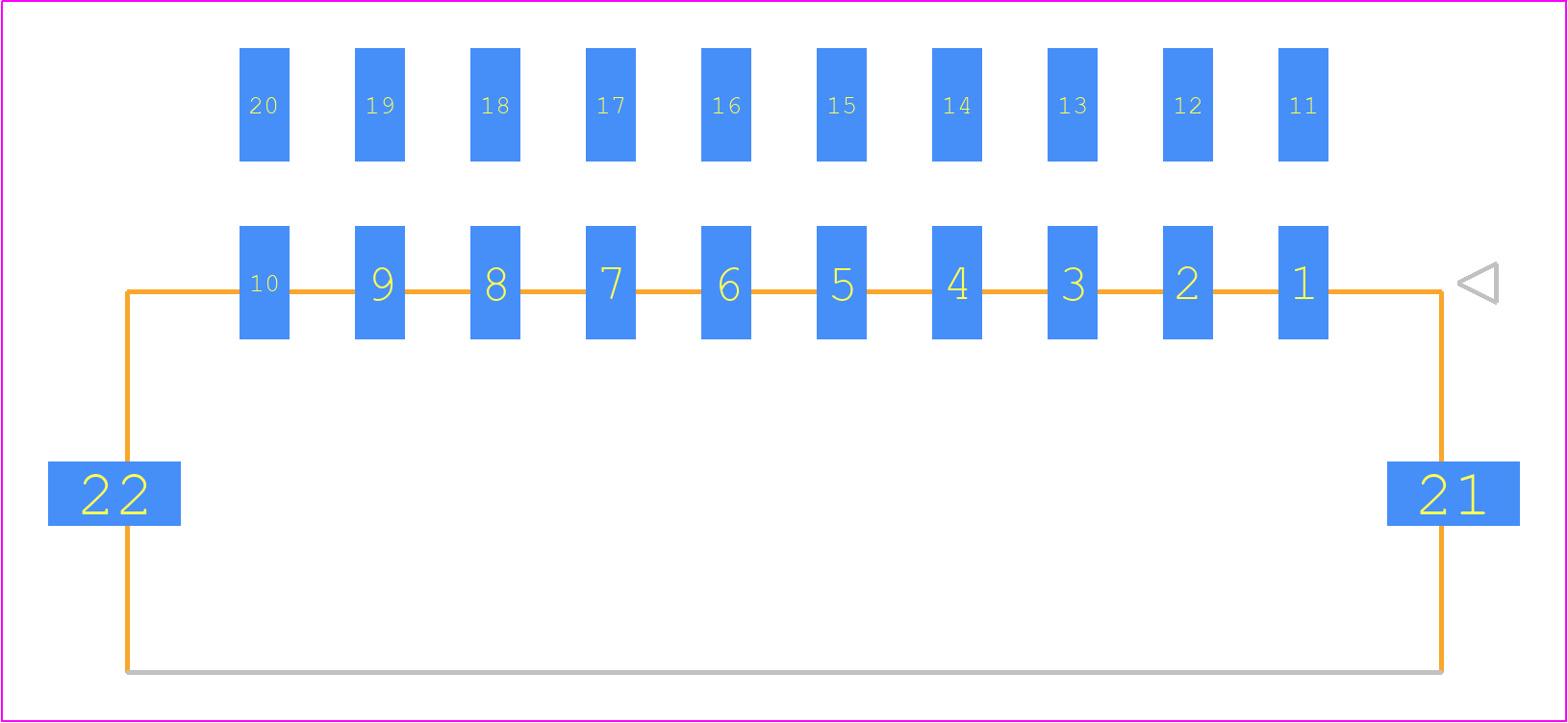

43045-2011 - Molex PCB footprint - Other - Other - 43045-20YY_09101192
click to zoom
3D Models
43045-2011 - Molex - 3D model - Other - 43045-20YY_09101192
click to zoom

43045-2011 Details

  • Manufacturer Part Number:

    43045-2011

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.85

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.606 inch

  • Body Length:

    1.325 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43045-2011 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 43045-2011 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 43045-2011 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 43045-2011 connector is designed to be resistant to moisture and corrosion, making it suitable for use in harsh environments. However, it's recommended to follow proper sealing and protection methods to ensure reliability.
  • While the 43045-2011 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's recommended to consult with Molex or a qualified engineer to ensure compatibility and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43045-2011 Overview

Use the download button to access the 43045-2011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43045, or try a keyword search, such as Power Connectors
