The recommended power-up sequence is to apply VCC first, followed by VEE, and then the analog and digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
To minimize noise, use a low-ESR capacitor (e.g., ceramic or film) for decoupling, keep analog and digital grounds separate, and use a quiet power supply. Additionally, consider using a noise-reducing circuit topology, such as a differential amplifier configuration.
The maximum allowable capacitive load is approximately 100 pF. Exceeding this value may cause oscillations or instability in the device. If a larger capacitive load is required, consider adding a series resistor to dampen the load.
Yes, the 4315Q16-U can be used in a single-supply configuration. However, this requires careful consideration of the input common-mode range and output voltage swing. Consult the datasheet and application notes for guidance on single-supply operation.
To troubleshoot oscillations or instability, check the power supply decoupling, ensure proper grounding, and verify that the input and output impedances are within the recommended ranges. Also, inspect the PCB layout for potential parasitic inductances or capacitances that may be contributing to the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4315Q16-U Overview

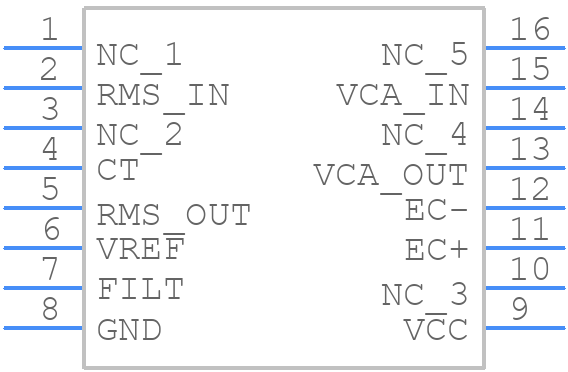

Use the download button to access the 4315Q16-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4315Q,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
