The recommended operating temperature range for the 4320Q28-U is -40°C to +85°C.
To ensure proper biasing, follow the recommended voltage supply and current requirements outlined in the datasheet. Additionally, ensure that the input and output pins are properly terminated and matched to the desired impedance.
The maximum power dissipation for the 4320Q28-U is 1.5W. It's essential to ensure that the device is properly heat-sinked and operated within the recommended temperature range to avoid overheating.
While the 4320Q28-U is a high-quality device, it's essential to consult with THAT Corporation or a qualified representative to determine its suitability for high-reliability or aerospace applications. Additional testing and qualification may be required.
To troubleshoot common issues, start by verifying the device is properly biased and terminated. Check for proper power supply decoupling, and ensure that the input and output signals are within the recommended specifications. Consult the datasheet and application notes for additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4320Q28-U Overview

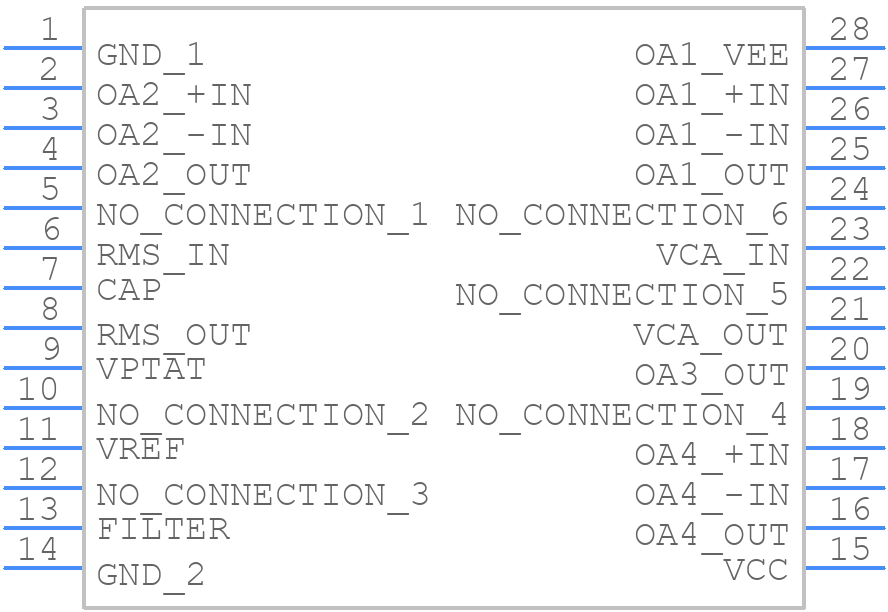

Use the download button to access the 4320Q28-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4320Q,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
