43650-0819 - Molex

Description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 8 Circuits, with PCB Press-fit Metal Retention Clip, Glow-Wire Capable, Black

Download 43650-0819 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43650-0819 - Molex - PCB symbol
click to zoom
PCB Footprints

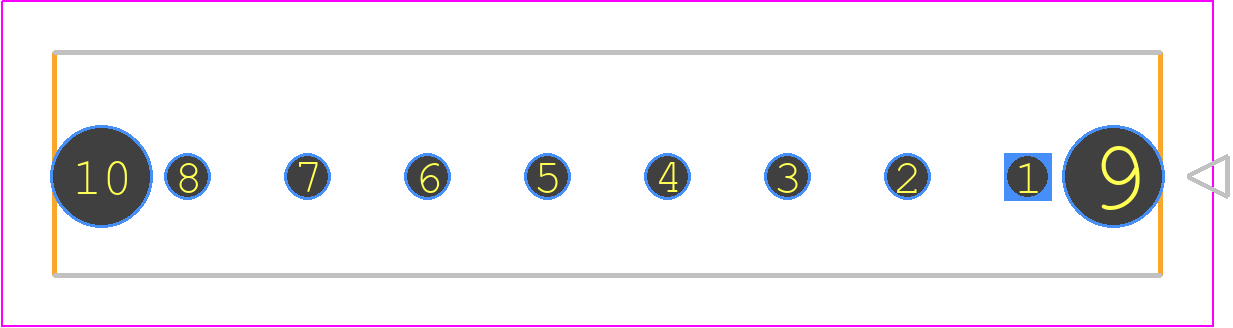

43650-0819 - Molex PCB footprint - Other - Other - 43650-08YY_18192063
click to zoom
3D Models
43650-0819 - Molex - 3D model - Other - 43650-08YY_18192063
click to zoom

43650-0819 Details

  • Manufacturer Part Number:

    43650-0819

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.6

  • Body Breadth:

    0.219 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    1.088 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43650-0819 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 43650-0819 connector is 50 cycles.
  • The operating temperature range for the 43650-0819 connector is -40°C to 105°C.
  • Yes, the 43650-0819 connector is designed to withstand high-vibration applications, making it suitable for use in harsh environments.
  • The typical lead time for the 43650-0819 connector is 6-8 weeks, depending on the quantity and availability.
  • Yes, the recommended torque for the 43650-0819 connector is 0.5 Nm to 1.5 Nm.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43650-0819 Overview

Use the download button to access the 43650-0819 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43650, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
