43810-0092 - Molex

Description: Mini-Fit BMI Header, Dual Row, Right-Angle, for 3.18mm PCB, 260C Wave Solderable, with Retention Clip

Download 43810-0092 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43810-0092 - Molex - PCB symbol
click to zoom
PCB Footprints

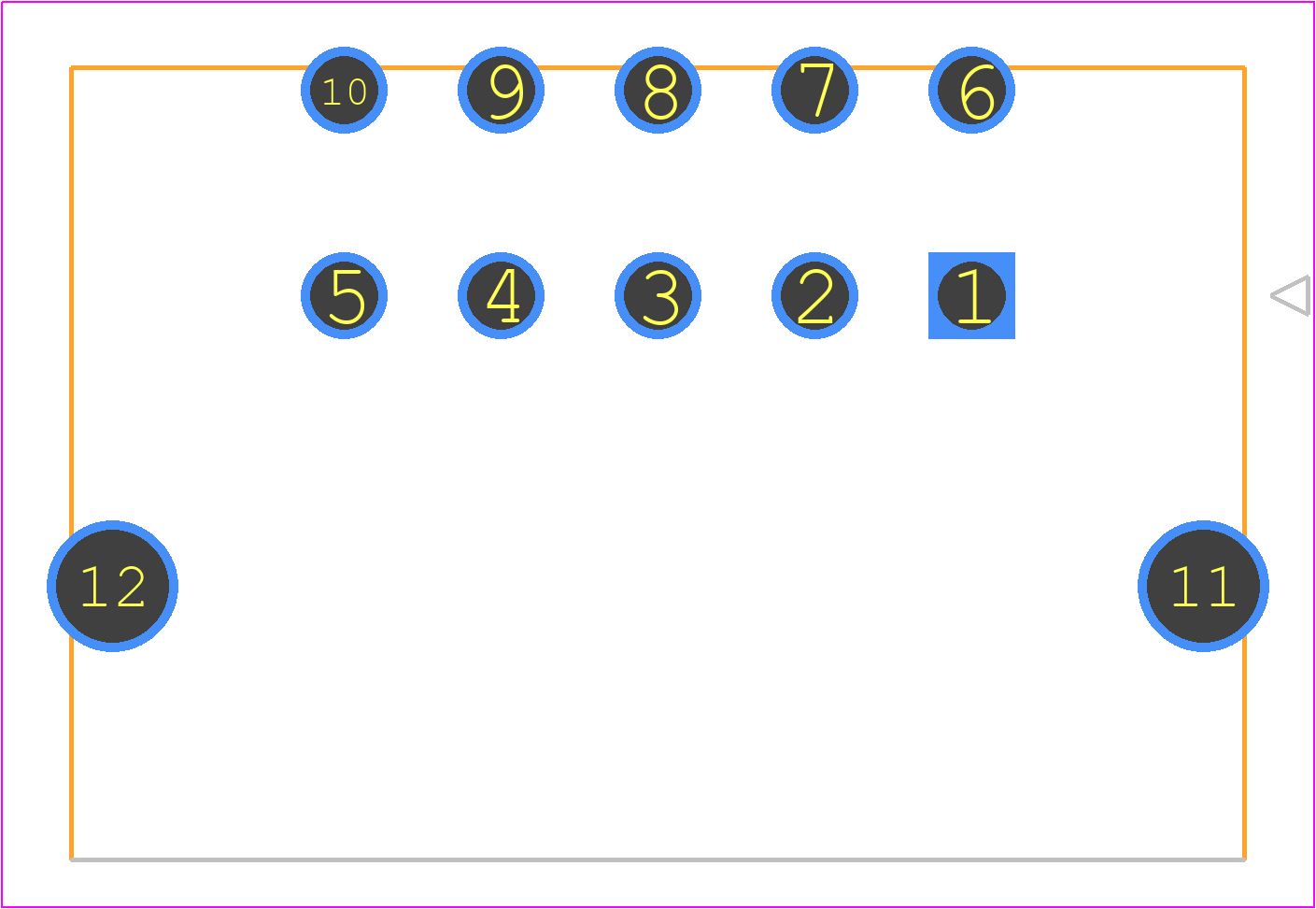

43810-0092 - Molex PCB footprint - Other - Other - 43810-0092
click to zoom
3D Models
43810-0092 - Molex - 3D model - Other - 43810-0092
click to zoom

43810-0092 Details

  • Manufacturer Part Number:

    43810-0092

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    RATED CURRENT(POWER): 13A

  • Body Breadth:

    0.591 inch

  • Body Depth:

    0.816 inch

  • Body Length:

    1.237 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE46

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

43810-0092 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 43810-0092 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The 43810-0092 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
  • The 43810-0092 has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26. However, the wire stripping length and insulation diameter may need to be adjusted accordingly.
