43973-0001 - Molex

Description: Mini-Fit Jr. BMI Header, 4.20mm Pitch, Dual Row, Vertical, Mate-First/Break Last, 40 Circuits

Download 43973-0001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

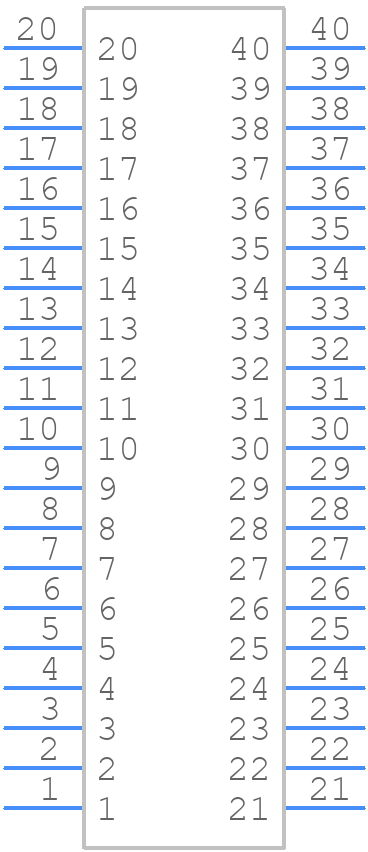

43973-0001 - Molex - PCB symbol
click to zoom
PCB Footprints

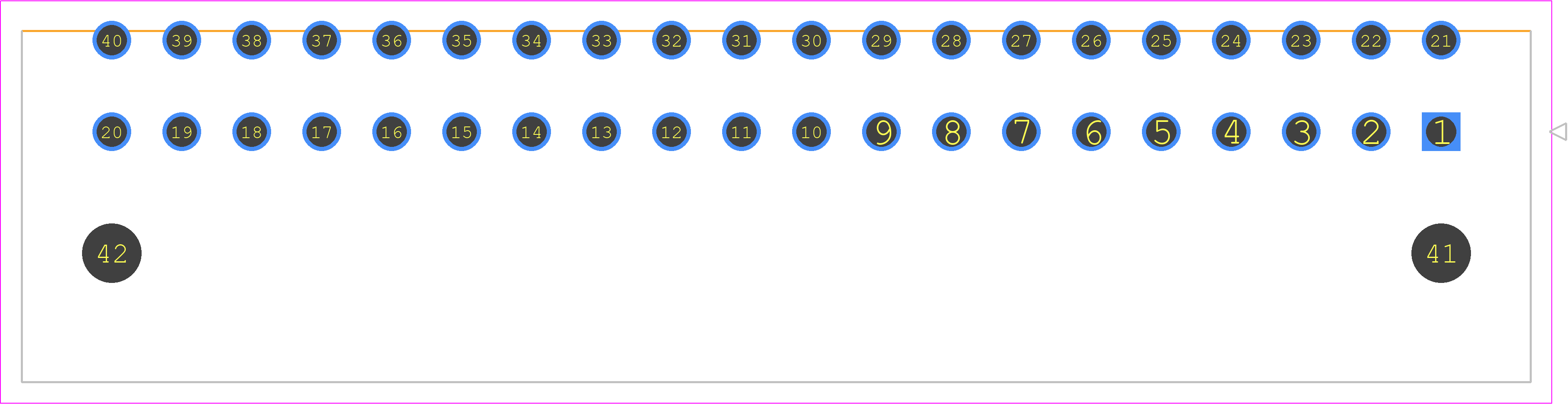

43973-0001 - Molex PCB footprint - Other - Other - 43973-0001
click to zoom
3D Models
43973-0001 - Molex - 3D model - Other - 43973-0001
click to zoom

43973-0001 Details

  • Manufacturer Part Number:

    43973-0001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Hong Kong SAR, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.35

  • Additional Feature:

    MATE-FIRST/BREAK-LAST

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    GLASS FILLED POLYAMIDE46

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

43973-0001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure connections.
  • Yes, the 43973-0001 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the connector is rated for operating temperatures ranging from -40°C to 105°C (-40°F to 221°F) and can withstand exposure to moisture and humidity, making it suitable for outdoor and high-temperature applications.
  • The 43973-0001 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections over an extended period.
  • Yes, the connectors are designed for automated assembly and can be easily integrated into high-volume production lines.
