A symmetrical layout with a solid ground plane and a minimum of 1mm clearance around the component is recommended for optimal performance and to minimize electromagnetic interference (EMI).
Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Ensure the component is aligned properly and soldered within 3 seconds to prevent thermal damage.
The 4404.0096 can operate safely within a temperature range of -40°C to 125°C, but it's recommended to derate the component's performance at temperatures above 85°C.
Yes, the 4404.0096 is designed to withstand vibrations up to 10g, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to prevent damage.
Handle the component in an ESD-protected environment, wear an ESD wrist strap, and store the component in its original packaging or an ESD-safe container to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4404.0096 Overview

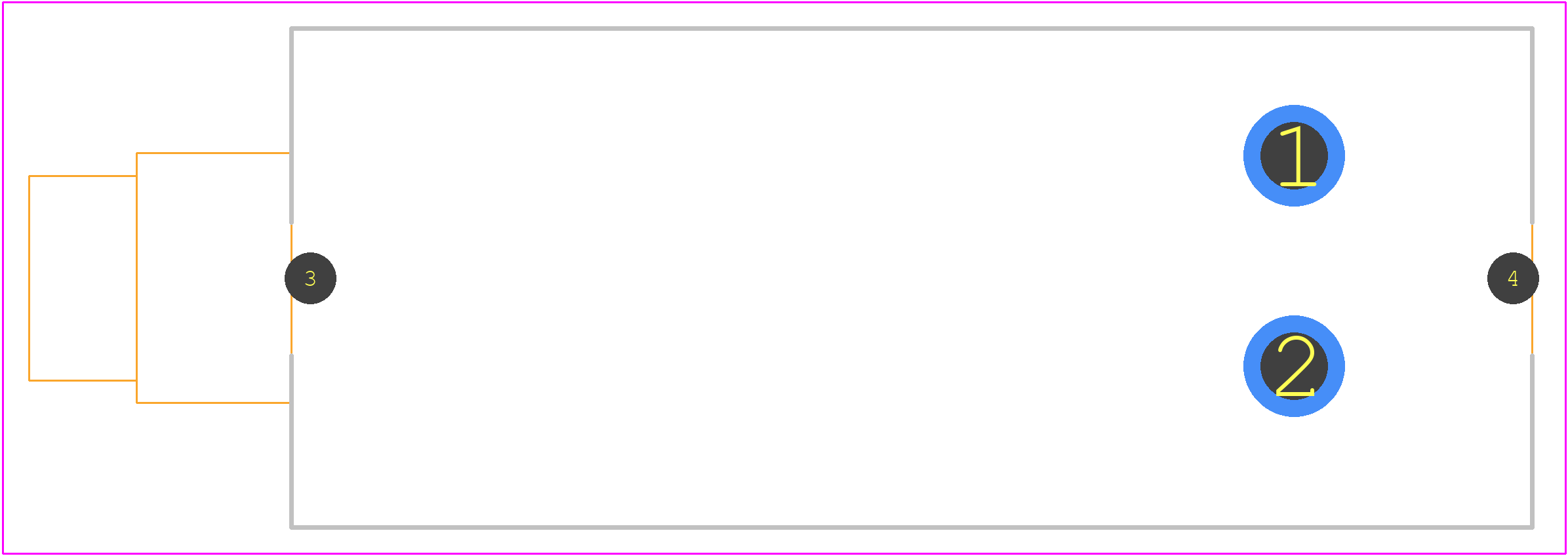

Use the download button to access the 4404.0096 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 4404.,
or try a keyword search, such as Circuit Breaker
