Schurter recommends a minimum PCB spacing of 2mm between the fuse and other components, and a minimum of 1.5mm between the fuse and the PCB edge. A fuse holder or clip is also recommended to ensure secure mounting and prevent damage.
Yes, the 4404.0101 fuse is designed to meet the requirements of IEC 60127-1 and is suitable for use in high-vibration and high-shock applications. However, it's recommended to consult with Schurter's application engineers to ensure the fuse meets the specific requirements of your application.
The 4404.0101 fuse is designed to handle inrush currents up to 100A for 10ms. However, it's recommended to consult with Schurter's application engineers to ensure the fuse meets the specific inrush current requirements of your application.
Yes, the 4404.0101 fuse is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
Schurter recommends storing the 4404.0101 fuse in its original packaging, away from direct sunlight and moisture. Handling should be done with electrostatic discharge (ESD) precautions to prevent damage to the fuse.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4404.0101 Overview

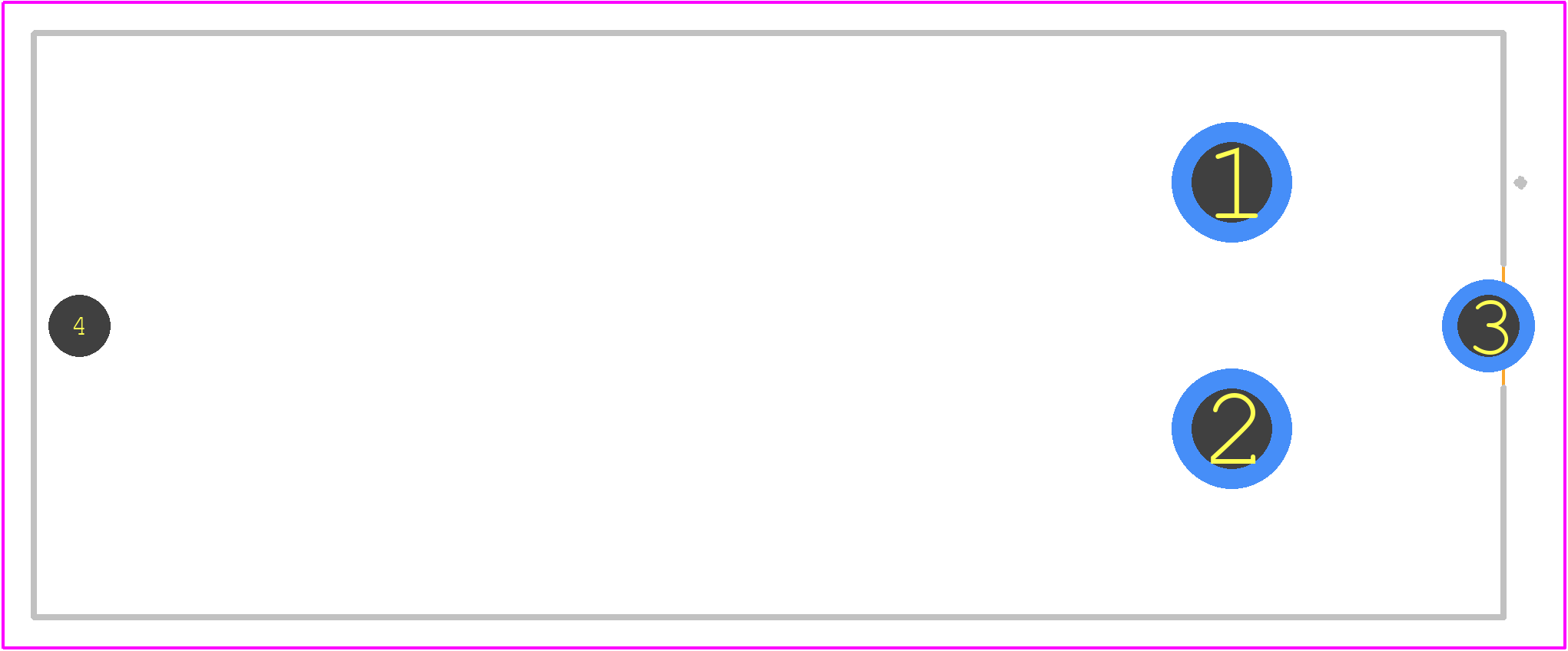

Use the download button to access the 4404.0101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4404.,
or try a keyword search, such as Circuit Breaker
