440500001 - Molex

440500001 Details

• Manufacturer Part Number:

  440500001

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China, South Korea, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  8

• Additional Feature:

  1 PORT, 8-POSITION EACH

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.505 inch

• Body Depth:

  0.81 inch

• Body Length:

  0.6 inch

• Body/Shell Style:

  JACK

• Connector Type:

  RJ CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  20 mΩ

• Contact Style:

  TELCOM, MODULAR

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  22.24 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED NYLON

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number of Ports:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

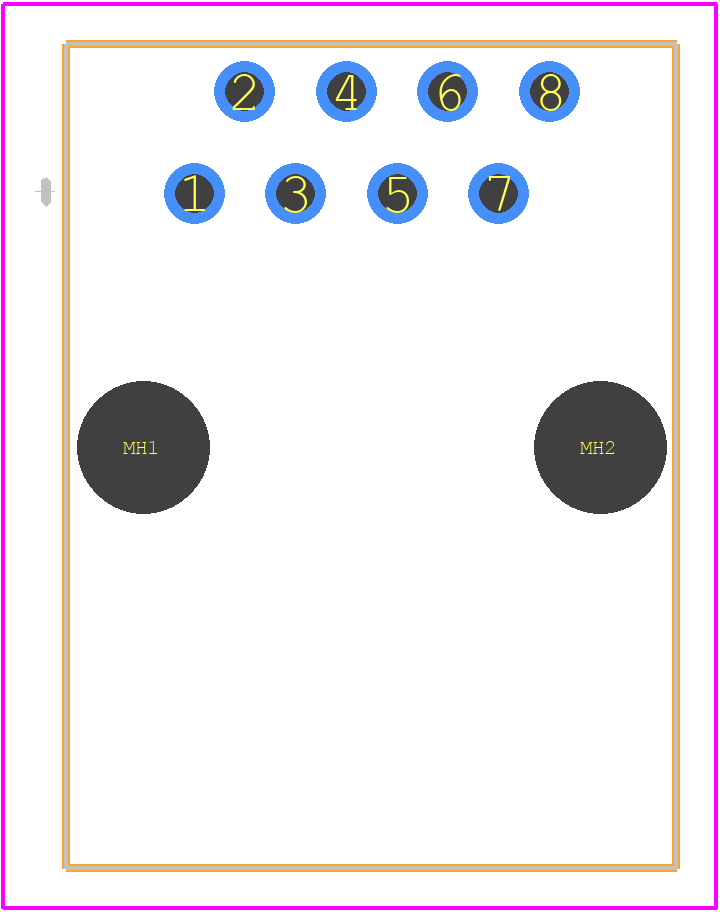

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  CSA, UL

• Shell Material:

  GLASS FILLED POLYAMIDE

• Terminal Length:

  0.12 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8

• UL Flammability Code:

  94V-0
